Effective winter road maintenance relies on speed and reliability. A high-performance snow roller brush is the ideal tool for rapid snow removal. It can handle maximum snow depths of up to 150 mm. YG Machinery’s rotary brush snow removal solution can cut snow clearing response time by over 50%. Therefore, choosing the right roller brush is critical.
Snow Roller Brush Parameter
| Model | YG2.0m 660 hydraulic | YG2.5m 660 hydraulic | YG2.5m 800 hydraulic | YG3.0m 600 hydraulic | YG3.0m 800 hydraulic | YG3.5m 660 hydraulic | YG3.5m 800 hydraulic | YG2m 660 Automatic Power | YG2.5m 660 Automatic Power | YG2.5m 800 Automatic Power | YG3m 660 Automatic Power | YG3m 800 Automatic Power | YG3.5m 660 Automatic Power | YG3.5m 800 Automatic Power |
| Effective working width (mm) | 2000 | 2500 | 2500 | 3000 | 3000 | 3500 | 3500 | 2000 | 2500 | 2500 | 3000 | 3000 | 3500 | 3500 |
| Brush diameter (mm) | 660 | 660 | 800 | 660 | 800 | 660 | 800 | 660 | 660 | 800 | 660 | 800 | 660 | 800 |
| Number of films to be printed (±2 films) | 40 | 52 | 52 | 57 | 57 | 68 | 68 | 39 | 51 | 51 | 56 | 56 | 67 | 67 |
| Maximum snow removal thickness (mm) ≤ | 100mm | 150mm | 150mm | 150mm | 150mm | 150mm | 150mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Dimensions (Length, Width, Height) (mm) | 2200*1700*890 | 2680*1750*1020 | 2680*1820*1160 | 3180*1730*1020 | 3180*1820*1160 | 3825*1730*1020 | 3825*1820*1160 | 2200*2000*1455 | 2700*1970*1510 | 2700*2050*1700 | 3200*1970*1560 | 3200*2040*1700 | 3720*1970*1560 | 3720*2040*1700 |
| Weight (kg) | 610 | 660 | 710 | 780 | 850 | 950 | 1050 | 930 | 1160 | 1210 | 1240 | 1290 | 1300 | 1350 |
| Compatible car models | Pickup trucks/mini loaders | 3300-3800 wheelbase | 3300-3800 wheelbase | Wheelbase of 3800-4700 and above | Wheelbase of 3800-4700 and above | Wheelbase above 4500 | Wheelbase above 4500 | 3300 wheelbase | 3300-3800 wheelbase | 3300-3800 wheelbase | Wheelbase of 3800-4700 and above | Wheelbase of 3800-4700 and above | Wheelbase above 4500 | Wheelbase above 4500 |
Dual Power Comparison: Choosing Your Snow Roller Brush System
We offer two core power options: Hydraulic drive and self-powered. This provides you with crucial dual power options.
- Hydraulic System: Uses BM5/BM6 series hydraulic motors. It delivers a powerful hydraulic system torque. This is best for loaders or trucks with existing hydraulic systems.

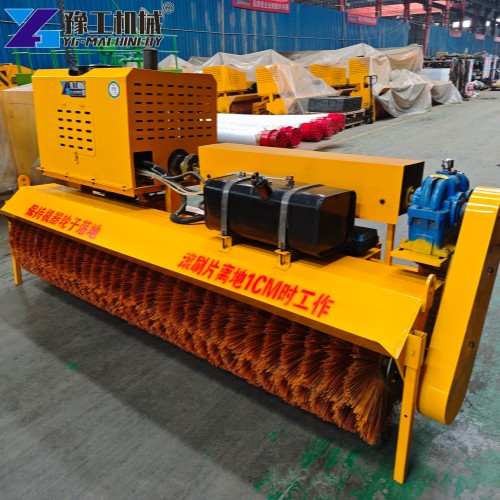

- Self-Powered: Equipped with a 22 kW to 37 kW diesel engine. The 50 L fuel tank allows 4 hours of continuous operation. This suits vehicles without hydraulic systems.
- Advice: Evaluate your vehicle interfaces and required continuous working time to make the best dual power options selection.
Core Performance: Working Speed and Brush Head Efficiency
High-speed clearing is the primary benefit of the snow roller brush.
- Working Speed: The roller brush rotation speed reaches up to 380 rpm. The operating speed can range from 10 km/h to 30 km/h.
- Brush Specification: Brush diameters are available in 660 mm or 800 mm. This ensures efficient coverage and depth clearance.
- Consequently, high working speed significantly reduces the clearing time per unit area.
Engineering Advantage: Low Temperature Durability and Brush Filament Life
The brush material is central to the performance and lifespan of the snow roller brush.
- Material Composition: We use imported polypropylene blended with steel wire composites.
- Low Temperature Durability: This composite brush filament maintains flexibility in extreme cold, down to minus 30 degrees celsius.
- Brush Filament Life: The filament’s service life is 300 hours or more. This extends the replacement cycle and reduces maintenance costs.
Installation Simplicity: The Quick Connect Structure Advantage
Rapid attachment change is vital for realizing “one vehicle, multiple uses.”

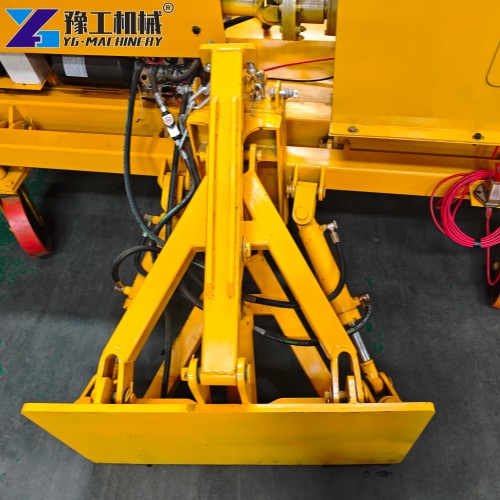

- Installation Speed: The brush uses a quick connect structure. Installation or removal takes only 2 minutes to 3 minutes.
- Compliance: Installation requires no modification to the original vehicle structure. This does not affect vehicle registration or annual inspection.
- Therefore, the quick-connect structure greatly enhances the seasonal versatility of the equipment.
Control & Safety: The Snow Throwing Shield Protects Operator View
Smart controls and safe design are essential for the snow roller brush.
- Smart Remote: The cab features an electronic control platform. It supports wireless remote operation for brush lifting and plus/minus 30 degrees side pivoting.
- Snow Throwing Shield: A high-strength snow-throwing shield is installed in front of the brush. This effectively prevents snow splash from obscuring the driver’s vision.
- Recommendation: Ensure your rotary brush snow removal equipment includes both remote control and a snow throwing shield.
Clearing Strategy: Brush Coordination with Trailer Hitch Salt Spreader
Effective snow removal requires strategy. The snow roller brush and spreader are an ideal pair.
- Fresh Snow Phase: For loose, freshly fallen snow. You should prioritize using the snow roller brush for rapid clearing.
- Spreader Coordination: After clearing most of the snow. A trailer hitch salt spreader should be used to apply de-icing agents. This prevents subsequent icing of the road surface.
- Remember: The brush (physical removal) should precede the trailer hitch salt spreader (chemical removal).
Application & Case Study: Rapid Airport Clearing in Canada 🇨🇦
Our customer, Alex, is the operations manager for an airport in Alberta, Canada. The airport required rapid removal of thin ice and light snow from runways.
- The Challenge: Runway clearing time was extremely tight. The equipment could not damage the pavement surface.
- The Solution: Alex chose the 3.5 meter wide YG hydraulic-drive snow roller brush. This machine features high working speed and significant hydraulic system torque.
- The Outcome: The brush rapidly cleared snow up to 5 mm deep. Runway clearing time was reduced by 40%. This ensured timely flight operations..
Technical Deep Dive: Hydraulic System Optimization
Our hydraulic-drive snow roller brush has technical advantages.
- Torque Advantage: The BM5/BM6 motors deliver powerful hydraulic system torque. This allows it to easily clear snow approximately 20 cm thick.
- Stable Drive: The dual motor synchronized drive technology ensures stable operation and uniform brush wear.
- Recommendation: For clearing thick snow and complex terrain, select a hydraulic-drive model with high hydraulic system torque.
Choose the Snow Roller Brush for Long-Term Value
Selecting the YG snow roller brush is an investment in efficiency, safety, and reliability. We offer advanced dual power options, superior low temperature durability, and convenient quick-connect structure.
Contact YG Machinery today for a custom quote on your snow roller brush. Let our rotary brush snow removal solution secure your winter traffic safety!
