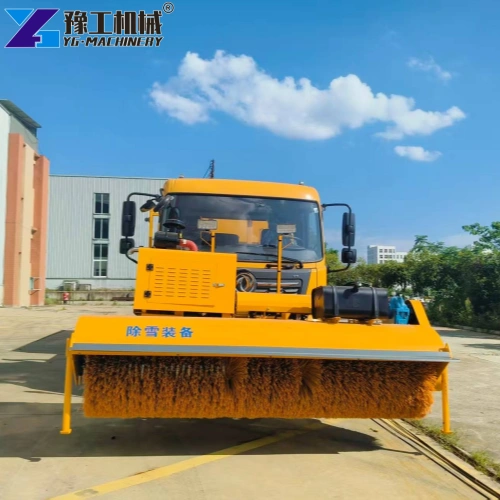

Winter snow clearing demands both speed and precision. Traditional snow plows cannot handle all road conditions. YG Machinery’s rotary snow brush offers a highly effective solution. This snow roller brush can easily clear snow depths exceeding 150 mm. Therefore, using our equipment can reduce your snow clearing response time by 50%.
Rotary Snow Brush Parameter
| Model | YG2.0m 660 hydraulic | YG2.5m 660 hydraulic | YG2.5m 800 hydraulic | YG3.0m 600 hydraulic | YG3.0m 800 hydraulic | YG3.5m 660 hydraulic | YG3.5m 800 hydraulic | YG2m 660 Automatic Power | YG2.5m 660 Automatic Power | YG2.5m 800 Automatic Power | YG3m 660 Automatic Power | YG3m 800 Automatic Power | YG3.5m 660 Automatic Power | YG3.5m 800 Automatic Power |
| Effective working width (mm) | 2000 | 2500 | 2500 | 3000 | 3000 | 3500 | 3500 | 2000 | 2500 | 2500 | 3000 | 3000 | 3500 | 3500 |
| Brush diameter (mm) | 660 | 660 | 800 | 660 | 800 | 660 | 800 | 660 | 660 | 800 | 660 | 800 | 660 | 800 |
| Number of films to be printed (±2 films) | 40 | 52 | 52 | 57 | 57 | 68 | 68 | 39 | 51 | 51 | 56 | 56 | 67 | 67 |
| Maximum snow removal thickness (mm) ≤ | 100mm | 150mm | 150mm | 150mm | 150mm | 150mm | 150mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Dimensions (Length, Width, Height) (mm) | 2200*1700*890 | 2680*1750*1020 | 2680*1820*1160 | 3180*1730*1020 | 3180*1820*1160 | 3825*1730*1020 | 3825*1820*1160 | 2200*2000*1455 | 2700*1970*1510 | 2700*2050*1700 | 3200*1970*1560 | 3200*2040*1700 | 3720*1970*1560 | 3720*2040*1700 |
| Weight (kg) | 610 | 660 | 710 | 780 | 850 | 950 | 1050 | 930 | 1160 | 1210 | 1240 | 1290 | 1300 | 1350 |
| Compatible car models | Pickup trucks/mini loaders | 3300-3800 wheelbase | 3300-3800 wheelbase | Wheelbase of 3800-4700 and above | Wheelbase of 3800-4700 and above | Wheelbase above 4500 | Wheelbase above 4500 | 3300 wheelbase | 3300-3800 wheelbase | 3300-3800 wheelbase | Wheelbase of 3800-4700 and above | Wheelbase of 3800-4700 and above | Wheelbase above 4500 | Wheelbase above 4500 |
Technical Deep Dive: Power and Precision in Rotary Snow Brush Design
An efficient rotary snow brush relies on an excellent power system and brush head engineering.
- Dual Power Core: We offer both hydraulic and self-powered systems. The hydraulic-driven model uses BM5/BM6 motors. This provides strong Attachment Torque. This allows the hydraulic unit to clear thick snow around 20 cm.
- Self-Powered Unit: Equipped with a 22 kW to 37 kW diesel engine. It operates independently for 4 hours. This is ideal for vehicles without complex hydraulic interfaces.
- Clearing Speed: The brush rotation speed reaches up to 380 rpm. The operating speed can be 10 km/h to 30 km/h. This ensures fast, thorough rotary brush snow removal.
Maximizing ROI: Cold Weather Reliability and Longevity
Equipment purchasing must consider the long-term Total Cost of Ownership (TCO).
- Brush Filament Material Advantage: The brush uses a composite material of polypropylene and steel wire. This significantly boosts its durability.
- Cold Weather Reliability: This composite brush maintains flexibility in extreme cold, down to minus 30 degrees Celsius. It resists breaking, ensuring reliable operation in frigid areas.
- Brush Lifespan: The filament service life is 300 hours or more. Consequently, replacement cycles are longer, and maintenance costs are lower.
- Dual Motor Sync: The hydraulic series uses dual motor sync drive. This guarantees uniform wear across the brush surface.
Wide Versatility: Beyond the Skid Steer Snow Brush Application Range
Our rotary snow brush focuses on maximizing the return on your vehicle investment.
- Vehicle Adaptation: The brush can fit various vehicle types, including pickups, loaders, sweepers, and water trucks. This offers greater versatility than a singular skid steer snow brush.
- Quick-Connect System: It uses a quick-connect system structure. Installation or removal takes only 2 minutes to 3 minutes. This truly enables “one vehicle, four seasons.”
- Model Range: Available sizes range from 2 meters to 3.5 meters. This ensures coverage from city sidewalks to airport runways.
- Tip: Provide your vehicle’s wheelbase (3300 mm to over 4700 mm) before purchase to ensure perfect vehicle adaptation.
Operational Strategy: Rotary Snow Brush Synergy with Snow Removal Plow
Effective snow clearing demands the right combination of tools and strategy.
- Initial Sweeping: When snow is loose, prioritize the rotary snow brush. It efficiently sweeps the snow and pushes it to the roadside.
- Heavy Snow and Ice: The snow removal plow is better for moving heavy snow (over 10 cm). When thin ice forms, use the plow first to break the ice, then use the brush for secondary, fine clearing.
- Operator Safety Features: Our brush includes a wireless remote control platform. The operator can safely control lifting and the plus/minus 30 degrees pivot from the cab. Furthermore, a high-strength snow shield protects the operator’s view.
Case Study and Call to Action: Success in a German Industrial Park
Hans, our customer, is the property manager for a large industrial park in Bavaria, Germany. He is responsible for winter clearing on all park roads and logistics lanes.
- The Challenge: The park roads were narrow. Snow needed fast removal to ensure logistics truck access. They needed equipment more flexible than a traditional skid steer snow brush.
- The Solution: Hans chose YG’s 2-meter self-powered rotary brush snow removal. It was easily adapted to their existing water truck fleet.
- The Outcome: Cold weather reliability ensured reliable startup at minus 15 degrees celsius. Clearing efficiency improved by 45%. This maintained unobstructed logistics lanes.
Choose the YG Rotary Snow Brush to Optimize Your Winter TCO
Choosing the YG rotary snow brush is an investment in high efficiency, low maintenance, and outstanding cold-weather reliability. Our quick-connect system and comprehensive vehicle adaptation solutions will significantly upgrade your winter operations efficiency.
Contact a YG Machinery expert today. Get your customized rotary snow brush solution and TCO optimization report.
