City roads and airports must quickly resume operations. Traditional methods are often too slow. YG Machinery’s rotary brush snow removal offers a superior solution. It effectively clears snow depths of up to 150 mm. Therefore, using our snow roller brush can reduce your clearing response time by over 50%.
Rotary Brush Snow Removal Parameter
| Model | YG2.0m 660 hydraulic | YG2.5m 660 hydraulic | YG2.5m 800 hydraulic | YG3.0m 600 hydraulic | YG3.0m 800 hydraulic | YG3.5m 660 hydraulic | YG3.5m 800 hydraulic | YG2m 660 Automatic Power | YG2.5m 660 Automatic Power | YG2.5m 800 Automatic Power | YG3m 660 Automatic Power | YG3m 800 Automatic Power | YG3.5m 660 Automatic Power | YG3.5m 800 Automatic Power |
| Effective working width (mm) | 2000 | 2500 | 2500 | 3000 | 3000 | 3500 | 3500 | 2000 | 2500 | 2500 | 3000 | 3000 | 3500 | 3500 |
| Brush diameter (mm) | 660 | 660 | 800 | 660 | 800 | 660 | 800 | 660 | 660 | 800 | 660 | 800 | 660 | 800 |
| Number of films to be printed (±2 films) | 40 | 52 | 52 | 57 | 57 | 68 | 68 | 39 | 51 | 51 | 56 | 56 | 67 | 67 |
| Maximum snow removal thickness (mm) ≤ | 100mm | 150mm | 150mm | 150mm | 150mm | 150mm | 150mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Dimensions (Length, Width, Height) (mm) | 2200*1700*890 | 2680*1750*1020 | 2680*1820*1160 | 3180*1730*1020 | 3180*1820*1160 | 3825*1730*1020 | 3825*1820*1160 | 2200*2000*1455 | 2700*1970*1510 | 2700*2050*1700 | 3200*1970*1560 | 3200*2040*1700 | 3720*1970*1560 | 3720*2040*1700 |
| Weight (kg) | 610 | 660 | 710 | 780 | 850 | 950 | 1050 | 930 | 1160 | 1210 | 1240 | 1290 | 1300 | 1350 |
| Compatible car models | Pickup trucks/mini loaders | 3300-3800 wheelbase | 3300-3800 wheelbase | Wheelbase of 3800-4700 and above | Wheelbase of 3800-4700 and above | Wheelbase above 4500 | Wheelbase above 4500 | 3300 wheelbase | 3300-3800 wheelbase | 3300-3800 wheelbase | Wheelbase of 3800-4700 and above | Wheelbase of 3800-4700 and above | Wheelbase above 4500 | Wheelbase above 4500 |
Product Deep Dive: The Core Power of Rotary Brush Snow Removal
High-performance rotary brush snow removal requires flexible power sourcing.
- Hydraulic System Advantage: Our hydraulic snow brush uses the BM5/BM6 series hydraulic motors. This provides strong torque and high transmission efficiency. Thus, it can clear deep snow around 20 cm.

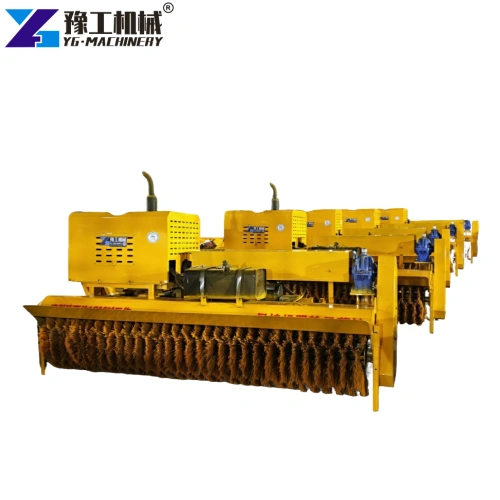

- Self-Powered Advantage: Equipped with a 22 kW to 37 kW diesel engine. The 50 L fuel tank allows 4 hours of continuous work. It runs independently, without relying on the vehicle’s PTO system.
- Working Speed: The brush rotation speed reaches 380 rpm. This allows an operating speed of 10 km/h to 30 km/h.
Technical Advantage: Durability, Safety, and Simplicity
The YG rotary snow brush is built to deliver lasting value.
- Low Temperature Operation: The brush uses polypropylene and steel wire composite material. It remains flexible in extreme cold, down to minus 30 degrees celsius.
- Brush Lifespan: The brush filament life exceeds 300 hours. This significantly reduces the maintenance frequency.
- Smart Safety: The cab remote supports plus/minus 30 degrees pivoting. A high-strength snow throwing shield protects the operator’s vision.
Rotary Brush Snow Removal FAQ
The hydraulic-driven hydraulic snow brush provides more power. It is ideal for heavy trucks and loaders. The self-powered rotary snow brush is easier to install. It suits vehicles without complex vehicle pto system requirements.
Yes, we offer a dedicated pickup snow brush attachment. It fits pickups with wheelbases from 3300 mm to 4700 mm. Installation is fast and does not affect your annual vehicle inspection.
The brush wear uniformity is key to longevity. Our dual-motor synchronized drive technology avoids uneven side wear. Therefore, under normal use, the brush life can exceed 300 hours.
Applications & Case Study: Rotary Brush Snow Removal at US Airports
Rotary brush snow removal is suitable for diverse applications. This includes municipal roads, highways, and airport facilities.
- Airport Zones: Runways, taxiways, and aprons. The rotary snow brush quickly clears thin snow and frost.
- Case Study: New England, USA
- David is the operations manager for a municipal service company in New Hampshire, USA. They needed fast clearing for large parking lots and town squares.
- The Challenge: Large clearing area requiring equipment that would not damage the pavement surface.
- The Solution: David purchased a 2.5 meter wide YG rotary brush snow removal. He valued its high working speed and low temperature operation maintenance needs.
- The Outcome: Clearing speed was 45% faster than their old equipment. This significantly reduced accident risks.
Vehicle PTO System Complexity vs. Quick-Swap Mechanism Simplicity
Many customers worry about the complexity of hydraulic attachment installation.
- Hydraulic Modifications: Installing a hydraulic snow brush might require detailed data, like gearbox models and PTO photos. This places demands on the vehicle PTO system.
- Self-Powered Advantage: The self-powered brush requires no complex modification. It only needs a simple connection to the vehicle battery (12 V or 24 V).
- Quick-Swap Mechanism: Our attachment utilizes a uniform quick-swap mechanism. It ensures removal and installation within 2 minutes to 3 minutes.
Strategic Integration: Rotary Brush Snow Removal in De-icing Strategy
How should you incorporate rotary brush snow removal into your de-icing strategy?
- Initial Snow Priority: During the loose snow phase, prioritize rotary brush snow removal for fast physical clearance.
- Plow Coordination: The snow removal plow is for moving thick snow or broken ice chunks. The rotary snow brush is then used for secondary, fine clearing.
- Spreader Timing: Only after clearing the snow should you use the spreader. This can save 30% in de-icing agent costs.
Company Strength, Service, and Trust Building
Premium Service Guarantee:
We offer comprehensive pre-sales consultation. This includes custom fitment solutions based on your vehicle model. Furthermore, we guarantee full parts supply. Technical support and after-sales service are fully assured.
Customer Testimonial:
“The YG pickup snow brush attachment changed how our fleet operates. Installation was incredibly fast. The power of the hydraulic snow brush is superb. We are now 40% more efficient than last year.” — Karl S.
Do not let winter storms disrupt your schedule. Choose YG rotary brush snow removal for reliability.
Contact us now to receive a free snow roller brush quote. Let us customize the ideal pickup snow brush attachment solution for you!
