YG hydraulic rock splitter is a device that uses high-pressure hydraulic force to split rocks. It inserts steel wedges into pre-drilled holes and uses high pressure to support the split rock from the inside. It is suitable for cracks that require precise and safe rock splitting. In addition, we also provide a variety of cutting machines, such as breaker hammers, rock cutters, rock drills, etc. If you have any needs, click to get prices.【WhatsApp/WeChat/Phone】+86 138 3711 2713
Hydraulic Rock Splitter Model Parameters
| Model | YG-250 | YG-350 | YG-450 |
| Wedge Length | 250mm | 350mm | 450mm |
| Piston Stroke | 90/220mm | 90/220mm | 90/220mm |
| Drilling Depth | >500mm | >700mm | >900mm |
| Punching Diameter | 42mm | 46mm | 46mm |
| Crack Width | 10-20mm | 10-20mm | 10-20mm |
| Cleavage Time | 10-15/s | 10-15/s | 10-15/s |
| Splitting Force | 500t | 800t | 800t |
| Weight | 240kg | 250kg | 260kg |
Application Scenarios of the Hydraulic Rock Splitter

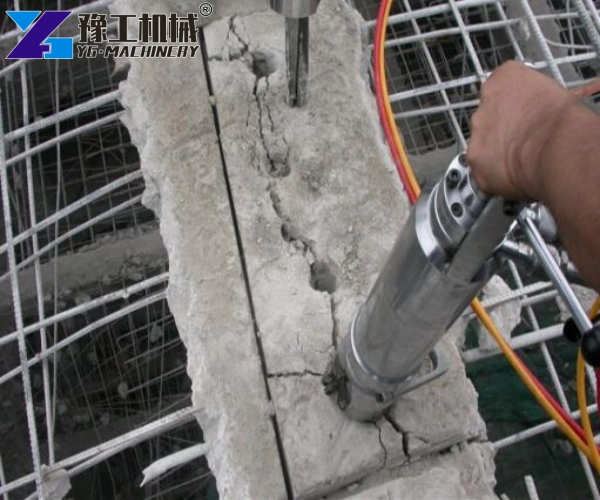

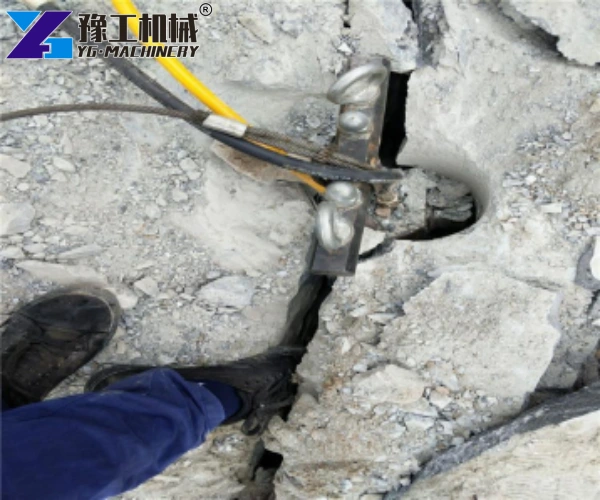

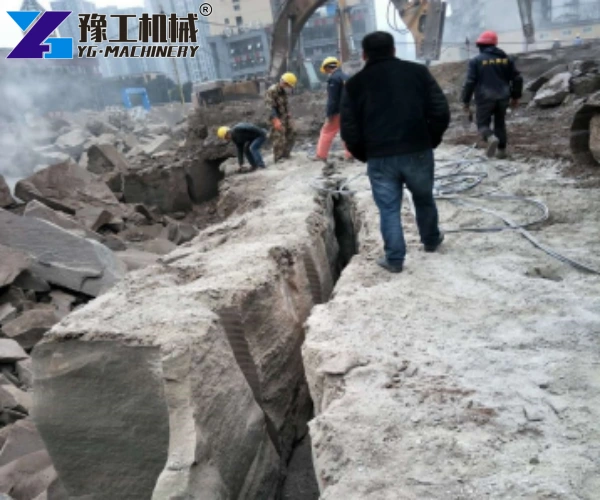

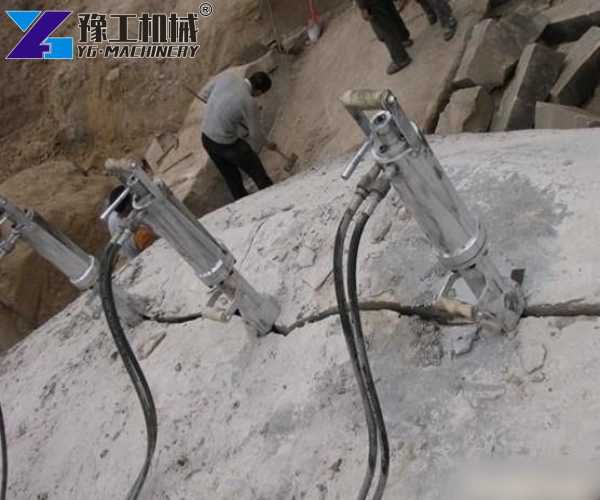

The hydraulic rock splitter is a device that uses hydraulic power to drive a wedge group to generate a huge splitting force and destroy rock or concrete structures from the inside. It has a wide range of applications and is particularly suitable for engineering environments that require high precision, low vibration, and environmental safety. For example, it is used in mines and quarries, for the secondary disintegration of large pieces of ore, rough material mining, demolition of concrete structures, tunnel and subway construction, water conservancy and hydropower projects, rock foundation excavation, and earthquake or mine rescue etc.
Three Core Advantages of Hydraulic Rock Splitter
Hydraulic Rock Splitters Are Irreplaceable in the Following Scenarios
- Environmentally sensitive areas: Densely populated areas, indoors, next to precision equipment, where low noise, no vibration, and no dust are required.
- High precision requirements: Projects that need to control the splitting direction or retain surrounding structures.
- Regulatory restrictions: Narrow spaces where blasting is prohibited or large equipment cannot enter.
By combining with other equipment such as drilling and breaker hammers, splitters can further improve construction efficiency and become the preferred tool for safety and environmental protection in modern engineering.
Concrete and Rock Splitter Structure

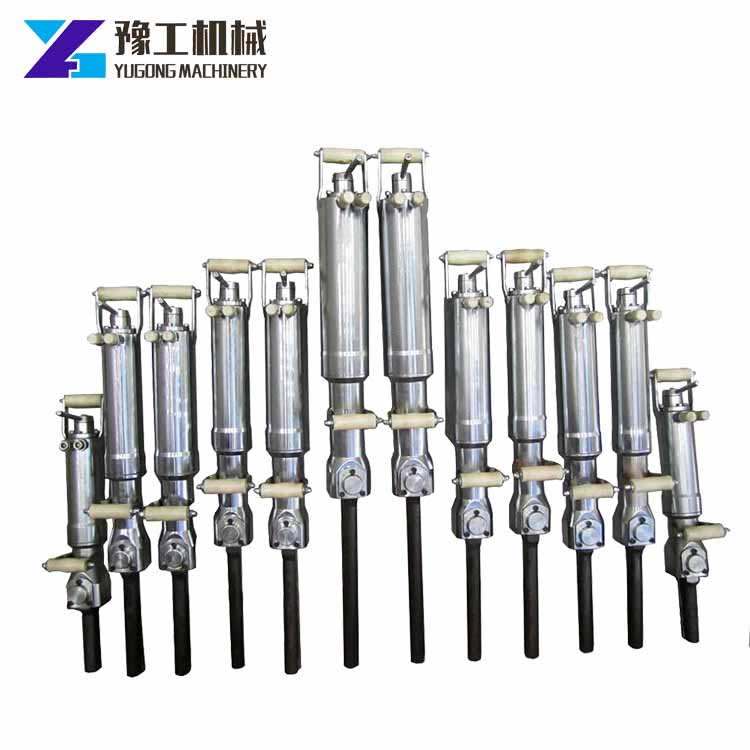

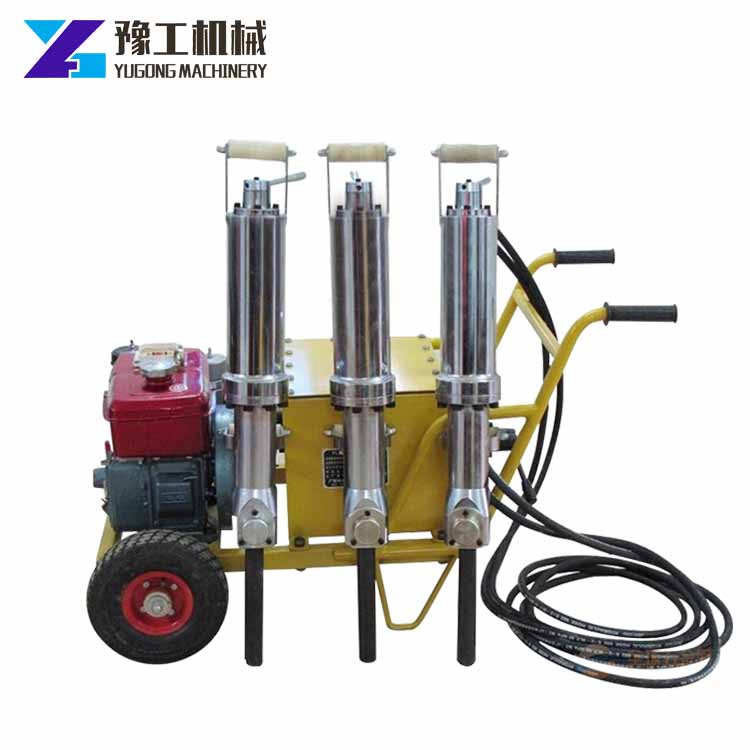

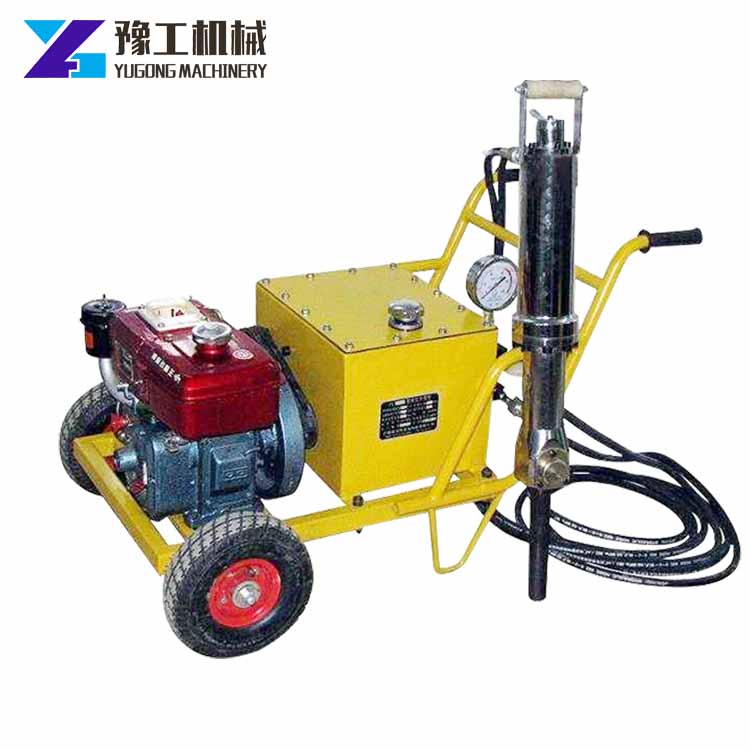

It is mainly composed of a hydraulic station, oil pipe, splitting gun, rock splitting wedge, etc. According to the type of power source, rock splitter equipment can be divided into four types: Electric, diesel, gasoline, and pneumatic. The material of the splitting gun can be divided into two types: Steel splitting gun and aluminum alloy splitting gun. Rock splitters for sale can also be classified according to the power of the splitting gun. Contact us now to get prices.
YG Machinery – a Leading Enterprise in Hydraulic Rock Splitting Technology in China
Over 20 Years of Expertise in R&d and Manufacturing
Since 2002, Henan YG Machinery has specialized in the research, development, and production of hydraulic rock splitters. Leveraging proprietary core technologies and integrated manufacturing capabilities, we have become a participating unit in setting industry standards for hydraulic splitting equipment in China. To date, we have provided reliable equipment solutions to over 30 countries worldwide, serving more than 3,000 clients in the mining, infrastructure, and municipal engineering sectors.
Cost-Effective Professional Solutions
Adhering to our principle of “quality first,” we deliver high-performance, long-lasting hydraulic rock splitters through large-scale production and refined cost management. Our machines achieve over 60% higher operational efficiency per unit compared to traditional impact equipment, significantly reducing overall construction costs.
Comprehensive Engineering Equipment Portfolio
Beyond our core product, the hydraulic rock splitter, YG Machinery offers specialized equipment for diverse engineering challenges:
Beyond our core product, the hydraulic rock splitter, YG Machinery offers specialized equipment for diverse engineering challenges:
Concrete processing equipment: Concrete pile crusher | hydraulic wall saw | wire saw machine
Eco-friendly construction systems: Floor shot blaster | hydroseeding machine | sandblasting equipment
Specialized engineering machinery: Firewood splitter | mini spider crane | excavator crusher bucket
Rock breaking series: Hydraulic breaker | static blasting equipment
Why Choose YG Machinery?
Innovation-driven: Over two decades of technological leadership.
Global trust: Proven reliability across 30+ countries.
Efficiency redefined: 60 %+ productivity gains for cost-sensitive projects.
Empower your projects with precision engineering – partner with YG Machinery today.【WhatsApp/WeChat/Phone】+86 138 3711 2713
