Shot Blasting Machine Supplier

tumble shot blasting machine
tumble shot blasting machine
tumblast shot blasting machine
tumblast shot blasting machine

Road and floor construction face many challenges. Old concrete surfaces, worn-out asphalt roads, or old markings need to be removed. These issues impact project timelines and quality. Traditional methods are inefficient. They also create a lot of dust. This dust is harmful to the environment and workers’ health. You need an efficient, eco-friendly solution. As a leading shot blasting machine supplier, YG Machinery offers powerful equipment. Our blasters quickly clean, roughen, and prepare various surfaces. They significantly improve your productivity and project quality. They also ensure a dust-free and safe work environment.

Get a Free Quote

Specifications of Mobile Shot Blaster

ModelYG-270(Single)YG550/600(Double)YG-850(Double)
Shot Blasting Wheel Diameter200mm
Working width270 mm550/600 mm800 mm
Walking speed0.5~20 m/min0.5~33 m/min
Concrete surface cleaning efficiency≥180 m2/h≥400 m2/h≥600 m2/h
Steel plate surface cleaning efficiency15-25 m2/h75-100 m2/h100-160 m2/h
Dust connection pipe diameter120 mm 150 mm
Suggest the diameter of steel balls1.2-1.5 mm1.5-1.8 mm
Steel pill consumption10 g/m2
Supporting dust collectorSeven-core automatic backflush vacuum cleanerEight-core automatic backflush vacuum cleaner
Shot wheel motorPower consumption11 kW11*2 kW15*2 kW
Input Current≤ 15 A≤ 22*2 A≤ 28*2 A
Walking motorPower consumption0.5 kW1.5 kW
Input Current1 A3 A
Size (mm)1000*300*11001950*720/775*14001950*1020*1550
Weight150 kg570 kg700kg
Power connection requirements400V, 50Hz, 100A, CEE socket

Get a Free Quote

Shot blasting machine usage scenarios
Shot blasting machine usage scenarios

In-Depth Shot Blasting Machine Analysis & Technical Advantages

YG Machinery’s shot blasting machine is designed for demanding industrial applications. Our equipment uses a Closed-Loop Blasting System. This system effectively recycles abrasives and dust. It prevents dust from spreading. This ensures a truly dust-free operation. The high-efficiency blast wheel fires steel shot at high velocity. This ensures uniform surface treatment. Our shot blasting machine supplier team focuses on detail. The machine has a compact structure. It is easy to transport. The design is ergonomic. This means operation is very simple. The equipment also comes with a high-efficiency dust collector. It captures almost all dust. This protects the environment and the operator’s health.

Get a Free Quote

floor shot blasting machine
floor shot blasting machine

Widespread Applications & Industry Case Studies

Our shot blasting machine has wide-ranging applications. It can treat various surfaces. These include concrete, steel plates, and asphalt. You can use it for:

  • Waterproofing Pre-treatment for Bridges and Decks
  • Runway Rubber Removal
  • Roughening of Parking Lots and Warehouse Floors
  • Road Marking and Coating Removal

Successful Case Study:

Our shot blasting machine was widely used by a construction company in Australia. They needed a fast way to remove old coatings and rust from a bridge deck. Their old method was sandblasting. It was slow and caused severe dust pollution. They chose YG Machinery’s mobile shot blaster. This machine completed the project in just one week. It was 45% more efficient than their old method. The project manager, David, said, “This shot blaster for sale is very reliable. Its mobility saved us a lot of time. The dust-free system also made our workers much safer.”

Get a Free Quote

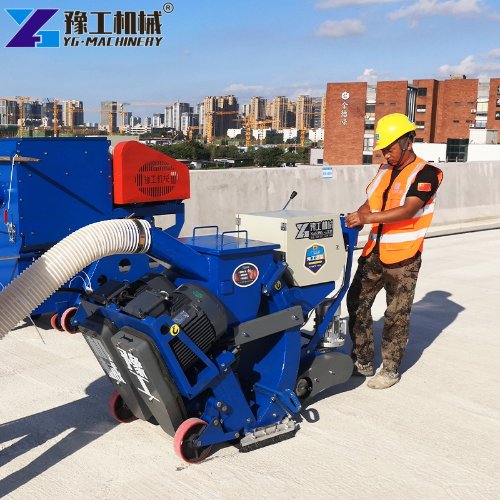

road shot blasting machine
road shot blasting machine

Shot Blasting Machine Supplier Q&A

Q1: How does your shot blasting machine work?

The working principle of our shot blasting machine is simple. The blast wheel fires steel shot onto the ground. The shot impacts the surface, removing dirt, coatings, and contaminants. After that, a vacuum system immediately collects the shot and all debris. It separates the shot from the debris. The steel shot can be reused. This whole process happens inside a sealed system. So, it’s very clean and dust-free.

Q2: Why is your machine dust-free?

Because we use a Closed-Loop System. It recycles the steel shot and collects all the dust. All dust is captured by our High-Efficiency Dust Collector. This means there is no dust on the job site. This protects the environment and greatly increases work efficiency. Our walk-behind shot blaster design also specifically considers this.

Q3: What are the benefits of your machine over traditional sandblasters?

A shot blaster provides a more uniform and effective surface treatment. It’s also more eco-friendly because it’s a dust-free operation. Moreover, a shot blaster uses reusable steel shot, while sandblasters use one-time sand. This significantly lowers operating costs. Our shot blasting machine price is also very cost-effective.

Get a Free Quote

shot blasting machine
shot blasting machine

YG Machinery: A Partner You Can Trust

We know that buying equipment is a big investment. As a reputable shot blasting machine manufacturer, we provide a complete solution. From pre-sale consultation to On-site Technical Support, we are with you every step of the way. Our team is highly experienced. They can recommend the best equipment for your project needs. We have the right models for both small and large jobs. Our tumble shot blasting machine has also received great reviews.

Call to Action

Ready to boost your project efficiency? Contact us now! Our expert team will provide a free consultation and a customized solution. Get a detailed shot blasting machine price and technical specifications. We are committed to providing you with a high-value shot blaster for sale.
