In the fast-growing renewable energy market, the speed and quality of solar power plant construction are critical to a project’s success. However, traditional construction methods often face challenges such as low efficiency, high labor costs, and difficulties working in complex geological conditions. YG Machinery understands these pain points, and our photovoltaic pile driver is specifically designed to solve them. It integrates advanced mechanical, hydraulic, and electrical control technologies to effectively improve construction efficiency and ensure engineering quality, making it the ideal solution for fast and precise project delivery.
Photovoltaic Pile Driver Parameter:
| Hydraulic photovoltaic pile driver | |||
| Overall dimensions | 4700*2100*2800mm | Drill pipe rotational speed | 180r/min |
| Track shoe width | 400mm | gradability | 30° |
| motor | 4108 | rock hardness | 6-20F |
| Drilling diameter | 80-500mm | Slide tilt angle | 120° |
| Drilling depth | 0-6m | Drill arm swing angle | left and right 150 ° |
| Reducer torque | 13000n.m | Slide swing angle | left and right 40 ° |
| Mainstream pump | triple pump | Driving speed | 0-3km/h |
| oil pump | 40/40/32 | ||
| Crawler photovoltaic pile driver | |||
| Overall dimensions | 4700*2200*2800mm | Hydraulic hammer flow | 50-110L/min |
| Track shoe width | 400mm | Impact frequency | 350-800BMP |
| motor | 4108 | Hydraulic system pressure | 25mpa |
| Generator power | 88kw Motor | Strong wind for heat dissipation | yes |
| Drilling depth | 0-6m | oil pump | 40/40/32 |
| Drilling diameter | 80-600mm | Driving speed | 3km/h |
YG Photovoltaic Pile Driver: A Deep Dive into Technology and Performance

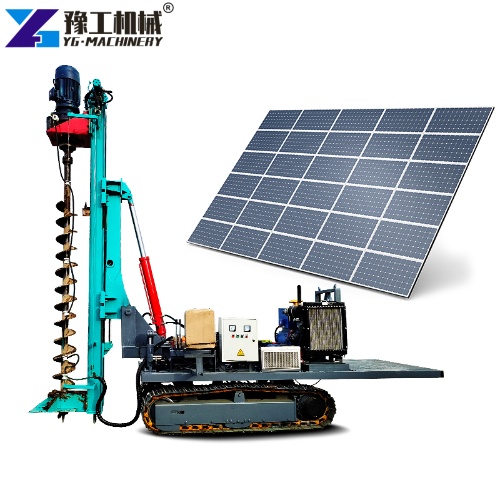

Our photovoltaic pile driver is an automated construction machine designed specifically for solar projects. Its core working principle involves using a powerful hydraulic system to drive an impact hammer or drill bit, quickly and precisely driving the piles into the ground. Our equipment mainly consists of a high-performance engine, a hydraulic pump station, a robust chassis system, and a precise piling mechanism, ensuring stable and reliable operation in various environments.
- Exceptional Performance and Efficiency: Our photovoltaic pile driver can significantly increase work efficiency, especially in large-scale solar power plant construction. Compared to manual piling, our equipment can greatly shorten the construction cycle, reducing the project timeline by over 30%. Furthermore, our unique piling mechanism ensures that every pile reaches the predetermined depth and verticality, providing a reliable pile foundation for solar brackets.
- Versatility and High Adaptability: The YG solar pile driver machine features multiple operating modes, allowing it to flexibly handle different types of soil and geological conditions. Whether it’s soft sand, hard rock, or rugged mountains, our equipment can handle the task with ease. We offer various models, such as the screw pile driver for screw piles and other equipment for different pile types, to meet your diverse construction needs.
- Long-Lasting Reliability and Low Maintenance Costs: We meticulously design and strictly control the quality of every component of our products. Key parts are made from high-strength, wear-resistant materials, extending the equipment’s service life. We also focus on ease of maintenance, with a simple structure that makes daily upkeep and inspections more convenient, effectively reducing long-term operating costs and downtime.
Applications and Customer Success Stories
The YG photovoltaic pile driver is widely used in various solar power generation projects, including ground-mounted plants, agri-photovoltaic, fishing-photovoltaic, and mountain power plants.
In South Africa, a large ground-mounted solar power plant project faced challenges due to complex terrain and a tight schedule. The client was looking for a photovoltaic pile driver that could balance efficiency and stability. By using our equipment, they efficiently completed the installation of over 10,000 piles in just a few months, not only finishing the project one month ahead of schedule but also significantly reducing labor costs. The client reported that our equipment operated continuously and stably, even in the hot, dry climate conditions, ensuring the smooth progression of the project.
In Australia, a small agri-photovoltaic project required precise piling on farmland to avoid damaging the soil. Our helical pile driver, with its excellent precision and low vibration characteristics, successfully completed the piling task, ensuring the integrity of the farmland. The client was very satisfied, noting that our equipment was not only efficient but also environmentally friendly.
How to Ensure You Choose the Best Solar Pile Driver for Sale?
Choosing the right photovoltaic pile driver is the crucial first step to a successful project. You need to consider the following aspects:
- Geological Survey: Before purchasing the equipment, be sure to conduct a detailed geological survey. Understanding the geological conditions of your area, including soil type and rock hardness, will help us recommend the most suitable equipment model for you.
- Pile Type: Different solar bracket foundations may use different types of piles, such as screw piles or steel piles. Our technical experts will provide you with a customized solution based on the pile type you are using.
YG’s Professional Support: Our team can provide you with a detailed buying guide to help you analyze your project needs and offer the best equipment configuration. We are dedicated to providing professional, practical advice to help you make a wise investment decision.
YG Machinery: Building Trust with Professionalism
As a machinery manufacturer with extensive experience, YG Machinery always puts the customer first. We have strong R&D capabilities, ensuring every piece of equipment meets the highest quality standards.
YG offer a full range of high-quality services: from pre-sales technical consultation and customized solution design to after-sales regular maintenance, parts supply, and technical support. We believe that an excellent product must be supported by excellent service. A client from Spain commented, “The photovoltaic pile driver from YG has fantastic performance, and their after-sales support is very responsive, which gives us peace of confidence during the project construction.”
