In today’s competitive beverage market, efficiency and precision are key to success. Our automatic mineral water filling machine is designed to meet the demands of modern drinking water production, integrating rinsing, filling, and capping for superior performance. With its scientific and reasonable design, convenient operation and maintenance, and high degree of automation, this machine is an ideal choice for hot filling applications such as fruit juice, tea beverages, and milk drinks.
Mineral Water Filling Machine Parameter
| Model | YG8-8-3 | YG14-12-4 | YG18-18-6 | YG24-24-6 | YG32-32-8 | YG40-40-10 |
| Capacity(for 500ml) | 2000 | 3000-4000 | 6000-8000 | 8000-12000 | 13000-15000 | 16000-18000 |
| Suitable bottle shapes | PET circular or square | |||||
| Bottle diameter(mm) | Dia50-Dia115mm | |||||
| Bottle height (mm) | 160-320mm | |||||
| Compressor air | 0.3-0.7Mpa | |||||
| Washing medium | Aseptic water | |||||
| Rinsing pressure | >0.06Mpa <0.2Mpa | |||||
| Application | water bottling plant sale | |||||
| Total power (KW) | 4.4kw | 4.4kw | 4.4kw | 5.2kw | 6.2kw | 7.8kw |
| Overall dimensions | 2.3*1.9m | 2.5*1.9m | 2.8*2.15m | 3.1*2.5m | 3.8*2.8m | 4.5*3.3m |
| Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m | 2.6m |
| Weight(kg) | 2500kg | 3200kg | 4000kg | 4500kg | 6500kg | 8000kg |
Product Advantages of Mineral Water Filling Machine
- Compact Structure & High Automation: The mineral water filling machine features a compact structure and simple form, equipped with a comprehensive control system. It’s easy to operate and highly automated, significantly reducing labor costs.
- Innovative Bottle Handling System: The air conveyor is directly connected to the infeed starwheel, utilizing an innovative bottle-neck clamping mechanism with a bottle-dividing function, eliminating the need for an infeed screw and conveyor chain. All transition wheels use bottle-neck clamps, allowing for bottle shape changes without adjusting equipment height or replacing any parts, which greatly enhances production flexibility.
- Superior Washing & Filling Accuracy: The specially designed bottle clamps on the rinser do not touch the bottle neck threads, preventing contamination. High-efficiency nozzles ensure thorough rinsing and conserve washing water. The filling system can be configured for gravity, vacuum, or pressure filling, ensuring precise fill volumes.
- High-Quality Capping & Safety Assurance: The capping head employs a magnetic constant torque device, guaranteeing capping quality without damaging the caps. An efficient cap management system comes with comprehensive automatic control and protection devices. The outfeed starwheel supports the bottle bottom with a spiral descending method, eliminating the need to adjust conveyor chain height for different bottle types. Additionally, a complete overload protection device effectively safeguards both equipment and operators.
- Intelligent Control & Renowned Components: The control system includes production speed control, cap shortage detection, automatic machine stop for jammed bottles, and production counting functions. We source key electrical and pneumatic components from reputable brands like Schneider, Siemens, and Mitsubishi, which ensures stable and reliable machine operation. Operators manage the entire machine via an advanced touchscreen control, enabling human-machine interaction for simple and stable operation.
Wide Application Scenarios and Complete Production Line
This mineral water filling machine is primarily suitable for hot filling of fruit juice, tea beverages, and milk drinks. It can adapt to various bottle types with only minor part changes, demonstrating its strong versatility. Both large-scale drinking water producers and small to medium-sized beverage factories can benefit from its capabilities.

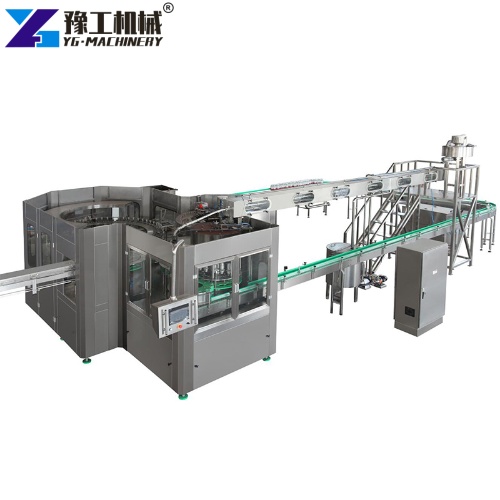

A complete mineral water bottling machine line consists of several interconnected critical components, each playing a vital role:
- Bottle Sorter: Arranges randomly oriented empty bottles into a uniform sequence, preparing them for subsequent stages.
- Air Rinser: Before filling, bottles undergo high-pressure air rinsing to remove dust debris or residual particles, ensuring internal cleanliness.
- Filling Machine: The core component, utilizing advanced filling mechanisms for precise fill volumes, minimizing product waste.
- Capping Machine: Seals filled bottles with caps or closures. Depending on the bottle design, the capper can handle screw caps, snap caps, or press-on seals.
- Labeling Machine: Accurately applies labels containing branding, nutritional information, and regulatory details.
- Packaging Section: Groups filled bottles into cartons, trays, or shrink-wrap for easy transportation and retail display.
Mineral Water Filling Machine Manufacturer – YG Machinery
We specialize in providing high-quality beverage filling solutions. We manufacture all equipment within our mineral water production line—from rinsing machines, filling machines, and capping machines to labeling machines—in-house. This ensures excellent quality and seamless integration. We can also customize the output capacity of our equipment to meet your specific requirements, offering you flexible production options.
In addition to our mineral water filling machine, we also offer a wide range of packaging equipment, including blow molding machines, round bottle labeling machines, small injection molding machines, paper cup machines, paper bowl machines, paper box forming machines, roll die-cutting machines, paper cup printing machines, folder gluers, paper bag machines, and slitting machines. We are committed to providing one-stop solutions to meet your diverse production needs.
Contact us today to receive detailed solutions and the most competitive water bottle filling machine price or water filler machine price. We look forward to partnering with you to enhance your production efficiency.
