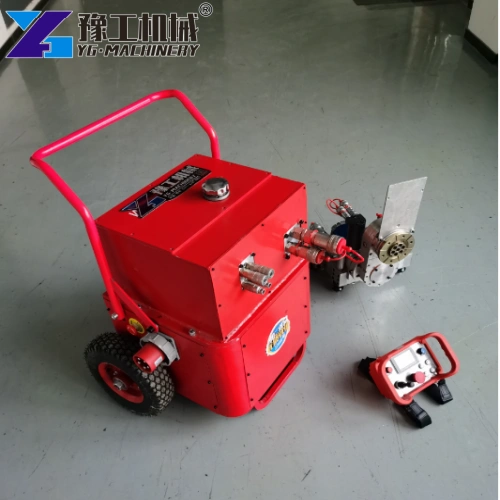

Hydraulic wall saw is an engineering tool designed for cutting hard materials. Its uses include precise cutting, demolition, or reconstruction of concrete walls and masonry structures. People widely use hydraulic wall saw in building door openings, laying pipelines, repairing bridges, and other scenarios. The advantages are:
- The hydraulic drive provides a strong cutting force to cope with high-strength concrete.
- The saw blade trajectory is controllable, and the cutting surface is flat and smooth.
- The precise cutting effect, equipped with a guide rail system, can achieve straight and flat cutting.
- Compared with traditional manual or electric tools, hydraulic wall saws have faster cutting speeds.
- There is low dust and low noise during operation, making it suitable for indoor and densely populated areas.
- Equipped with diamond saw blades, it has a long service life and low maintenance costs.
Hydraulic Wall Saw Parameter
| Hydraulic Oil Pump | Model | YG 600 | YG 700 |
| Max. power | 25KW | 30KW | |
| Motor cooling method | Air cooling | water cooling | |
| Rated voltage | 380V 50HZ | 380V-420V 50HZ-60HZ | |
| Pressure stages | 3 | 3 | |
| Max. operating pressure | 200bar/20Mpa | 210bar/21Mpa | |
| Oil flow rate | 30-80L/min | 40-100L/min | |
| Dimensions | 600mm*650mm*1050mm | 500mm*520mm*1100mm | |
| Weight | 220kg | 140kg | |
| Wall Saw | Saw blade diameter range | 800-1400mm | 800-1600mm |
| Cutting depth | 620mm | 730mm | |
| Max.. working pressure | 180bar/18Mpa | 200bar/20Mpa | |
| Max.. oil flow rate | 100l/min | 100l/min | |
| Gearing | Gear | Gear | |
| Rotation speed | 450/950/1300Rpm | 450/850/1200Rpm | |
| Dimension | 400mm*420mm*400mm | 400mm*420mm*400mm | |
| Weight | 38kg | 39kg |
Hydraulic Wall Saw Has the Following Significant Features
- Strong power and efficient cutting: It provides continuous and stable high torque and power output and can easily cut hard materials such as high-strength concrete and reinforced concrete. The cutting efficiency is 15-20 times higher than that of traditional tools, and it is especially suitable for the rapid demolition of thick concrete or rocks.
- High-precision cutting: Equipped with a precise guide rail system to ensure a straight cutting line and smooth cut surface, reducing the need for subsequent processing. The cutting depth and angle can be adjusted according to actual needs to adapt to various complex cutting tasks.
- Wide applicability: It can cut a variety of materials such as reinforced concrete, masonry, ceramics, etc., and is widely used in building door openings, bridge reconstruction, pipeline laying, and other scenarios.
- Safe and reliable design: Equipped with an overload protection function, high hydraulic system stability, reduced equipment failure rate, and operational safety that far exceeds expectations.
Hydraulic Wall Saw Advantages Compared to Traditional Products
Efficiency: Traditional electric saws or pneumatic saws are limited by power, and cutting thick walls requires multiple operations, while hydraulic wall saws can reach a single cutting depth of 520 mm, shortening the construction period by more than 50%.
Cost: Traditional methods are prone to waste and structural damage, and the subsequent repair cost is high; hydraulic wall saws can reduce material waste through non-destructive cutting, and the long-term comprehensive cost is lower.
Environmental protection and health: Traditional cutting produces a lot of dust and noise, while concrete wall cutting machines use wet cutting or a closed design, which meets green construction standards and ensures the health of operators.
Operational flexibility: Traditional tools rely on human control, and accuracy is affected by experience; hydraulic wall saws can be used with remote control devices to achieve precise cutting across floors or complex angles.
Hydraulic Wall Saw Has a Wide Range of Applications

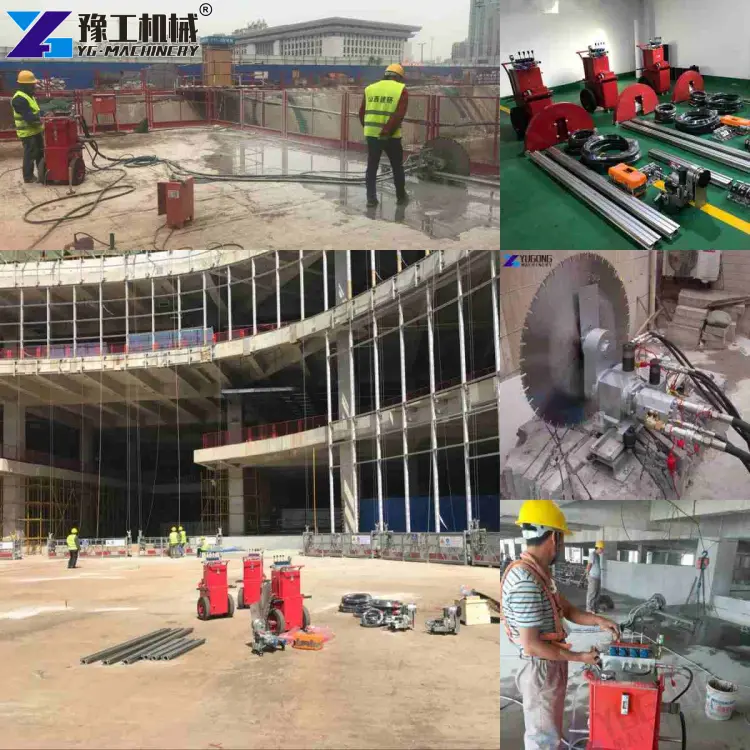

Building Remodeling and Demolition
Door and window openings in walls: Accurately cut out the desired window and door openings in existing concrete walls without destroying the surrounding structure.
Structural modifications such as balconies, staircases, elevator shafts, etc.: Accurately remove or modify concrete structures to facilitate new design solutions.
Partial demolition of buildings: Safe and efficient removal of concrete in specific areas where part of the structure needs to be preserved.
Cutting beams and columns: Accurate cutting of concrete beams and columns for structural adjustment or demolition.
Bridge and Road Works
Bridge cutting & repair: Cutting bridge decks, abutments, etc., for repair or replacement.
Cutting expansion joints: Cutting precise expansion joints in bridges and roads to accommodate temperature changes.
Tunneling: Excavate tunnel openings, cut tunnel walls, etc.
Highway improvement: Cutting concrete guardrails, barriers, etc.
Cutting of Special Structures
Dam cutting and modification: Partial cutting or complete removal of dams.
Decommissioning of nuclear power plants: Precise cutting of concrete structures around nuclear reactors.
Underwater cutting: Special hydraulic wall saws can be used to cut concrete structures underwater.
Cutting thick concrete structures: Hydraulic wall saws can cut thick concrete structures that are difficult to handle with conventional methods.
Other Applications
Earthquake rescue: Used to quickly break down collapsed concrete structures and rescue trapped people.
Quarry: For cutting large stones.
Laboratory research: For precise cutting of concrete specimens for material properties research.

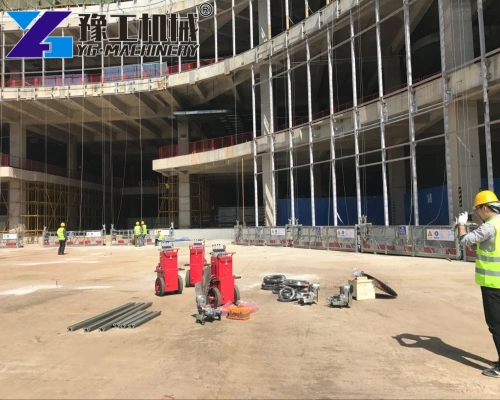

Hydraulic Wall Saw Manufacturer – YG Machinery
YG Machinery: Winning Global Trust with Excellent Performance
YG hydraulic wall saws are exported to Saudi Arabia, Australia, France, Canada, Chile, Qatar, the United States, and other places. Over the years, we have focused on the r&d and manufacturing of high-quality concrete wall saws. This dedication to quality has won the recognition and trust of customers around the world. Excellent product performance and competitive prices have enabled us to establish long-term and stable cooperative relationships with many customers.

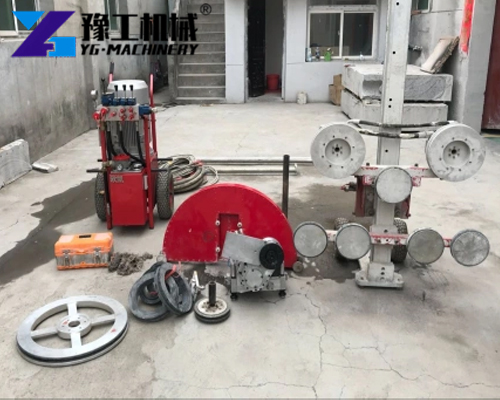

As a professional concrete cutting equipment manufacturer, YG Machinery provides comprehensive solutions, including hydraulic rock splitters, concrete wall saws, stone wire saws, concrete pile breakers, excavator hydraulic shears, excavator milling machines, excavator crushing buckets, hydraulic breakers, wood splitters, excavator drills and splitters, etc.
Whether you need stand-alone customization or an overall solution, YG’s senior team is ready to provide exclusive services. Feel free to contact us at any time for more details and offers.【WhatsApp/WeChat/Phone】+86 138 3711 2713
