Are you looking for a hydraulic stone splitter? YG offers you powerful hydraulic stone splitter. This machine is very useful. It can easily break tough rocks and concrete. It’s safer and better for the environment than old ways. It uses liquid power to split rocks from the inside. It’s as simple as breaking a cookie. It helps you finish your work faster.
The Parameters of Hydraulic Stone Splitter:
| Model | YG-250 | YG-350 | YG-450 |
| Wedge Length(mm) | 250mm | 350mm | 450mm |
| Piston Stroke(mm) | 90/220mm | 90/220mm | 90/220mm |
| Drilling Depth(mm) | >500mm | >700mm | >900mm |
| Punching Diameter(mm) | 42mm | 46mm | 46mm |
| Crack Width(mm) | 10-20mm | 10-20mm | 10-20mm |
| Cleavage Time(s) | 10-15/s | 10-15/s | 10-15/s |
| Splitting Force(T) | 500t | 800t | 800t |
| Weight(kg) | 240kg | 250kg | 260kg |

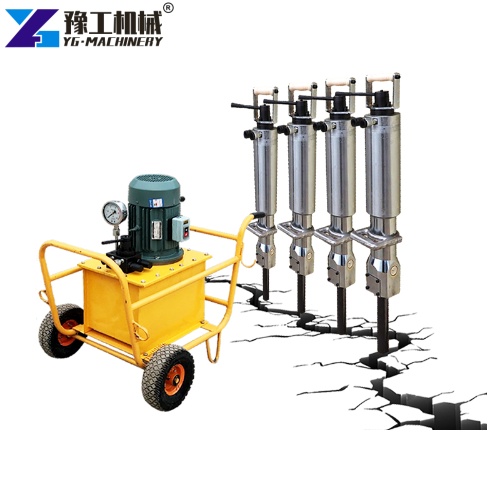

Hydraulic Stone Splitter Main Components and Functions

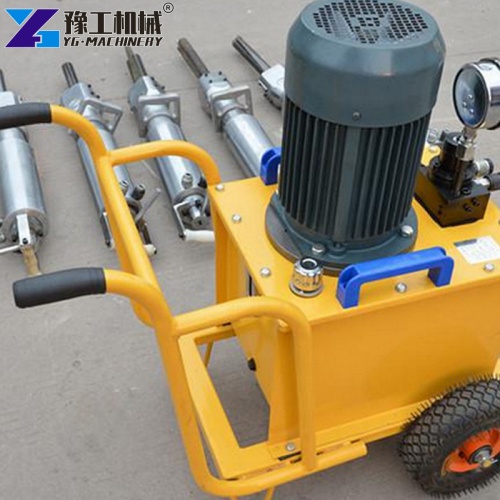

The Hydraulic Pump Station
provides the power source for the entire splitting system, pressurizing and delivering hydraulic fluid to the splitting lance head. The performance of the pump station directly affects the efficiency and stability of the splitter. The performance of the pump station directly affects the efficiency and stability of the splitter. Electric and diesel-powered models are available.
The Splitting Gun Head
It is the core component for performing the splitting operation, and its internal structure includes the piston, wedge, etc.. The quality and design of the head directly affect the splitting effect and service life.
The Hydraulic Pipeline
It is responsible for connecting the hydraulic pump station and the splitting lance head, and transmitting high-pressure hydraulic oil. The quality of the pipeline must be reliable, able to withstand high pressure and prevent leakage.
Control System
Used to operate and monitor the operation of the equipment, including functions such as starting, stopping, and pressure adjustment. Stability and ease of use of the control system are essential to improve efficiency.
Hydraulic Stone Splitter for Sale Q&A
Hydraulic rock splitter, is a kind of machine for splitting rock, mostly used in construction, decoration on, engineering construction, ore mining operations, the secondary disintegration of large ores, concrete components of local and total demolition work.
High-pressure oil output from the pump station drives the oil cylinder, generating a huge thrust. When the high-pressure oil output from the hydraulic station pushes the middle wedge of the splitting gun to move forward, the side wedges are propped up to both sides.
You need a rock drill to cut a hole before working.
Choosing the Right Hydraulic Stone Splitter
Picking the right hydraulic stone splitter is important. You need to think about the type of rock you are splitting, how big the pieces need to be, and how much space you have to work in. Different projects might need different sizes and power levels of machines. We at YG have many models to fit your different needs. Our expert team can also help you choose the best equipment for your project.
YG is a top manufacturer in China. Our machines are sold all over the world. They are exported to Saudi Arabia and the UAE. Also to Croatia and Nigeria. We offer the best hydraulic rock splitter for sale. But we have more. You can find other tools. Such as rope saw machine, concrete wall saw, pile crusher, high frequency wall saw, excavator drill and splitter, firewood splitter, hydraulic crusher, excavator drum cutter, excavator rock saw, mobile crusher, excavator hydraulic shear, and excavator rock splitter. Each is suitable for different tasks. Planning to buy? Send us an email to tell us your needs. We will provide you with the best service. Contact YG now!
