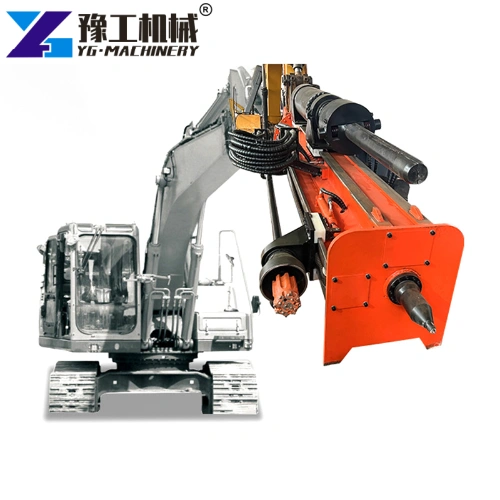

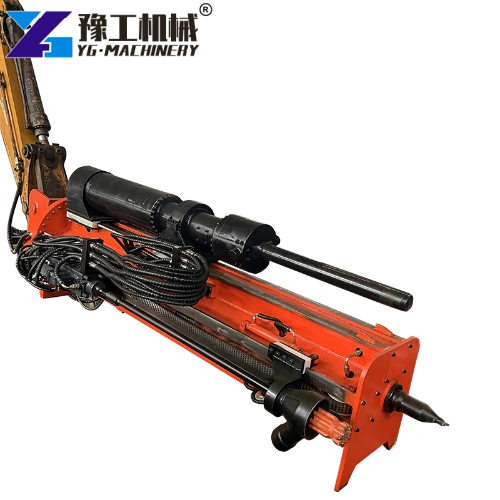

Hydraulic rock drill & splitter is a composite attachment installed on the front end of the excavator. It uses hydraulic expansion to break rocks. It has a small vibration and can efficiently break hard materials such as granite and limestone. Its core feature is that it integrates the two steps of drilling and splitting into one piece of equipment. It is driven by the hydraulic system of the excavator to achieve continuous operations of rapid drilling and efficient splitting. It can achieve large spacing and large crack construction even without a flying surface, significantly improving construction efficiency and reducing safety hazards. This is unique in the hydraulic splitting machine industry. It is more than ten times faster and less expensive than using impact hammers, expansion crushers, and disc cutters. Want to know the details and quotation of the hydraulic rock drilling and splitting machine? Contact us now!
Hydraulic Rock Drill & Splitter Parameter
| Rock Drilling Machine | |||
| Power | Drilling hole diameter | Drilling depth | Drilling speed |
| 24kw | Middle 120mm | 1600mm | 1m/min |
| Splitting Machine | |||
| Splitting depth | Splitting force | Rotation angle | – |
| 1000MM | 8000T | 120° | – |
| Push Beam | |||
| Rock drilling maximum propulsion | Splitting maximum pullout force | ||
| 25KN | 70KN | ||
| Splitting the maximum pullout force | |||
Integrated Hydraulic Rock Drill and Splitter Application Scenarios
- Quarrying: Precision rock splitting in limestone and granite mines.
- Demolition: Safe removal of reinforced concrete structures.
- Tunneling: Soft rock excavation and pre-splitting for tunnel faces.
- Infrastructure: Widening roads and excavating bridge foundations.
6 Advantages of Rock Drilling and Splitting Machine
- Integrated operation, efficient and convenient: Integrating drilling and splitting reduces equipment replacement and manual operation, significantly improving work efficiency.
- Safe and environmentally friendly: There is no need for blasting, avoiding the safety hazards and environmental pollution caused by explosions, with lower noise and dust.
- Precise and controllable: The splitting direction and crack size are controllable, avoiding over-breaking and improving the utilization rate of stone.
- Powerful splitting ability: The hydraulic splitter generates tremendous splitting force, easily crushing rocks of various hardness levels.
- Flexible operating range: Mounted on the excavator, it is easy to move and suitable for various complex work sites.
- Reduced operating costs: There is no need to purchase and transport explosives, reducing blasting costs and safety management costs.
Rock Drilling and Splitting Machinery for Sale-YG

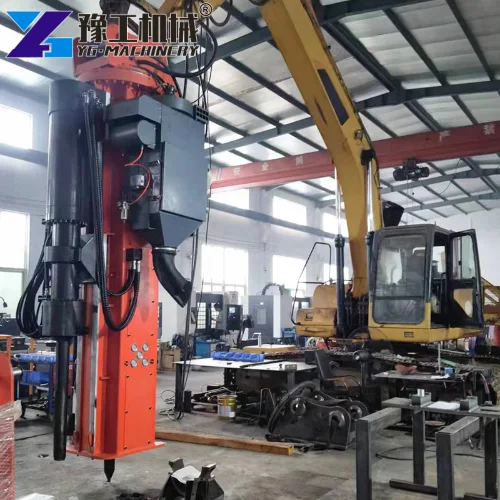

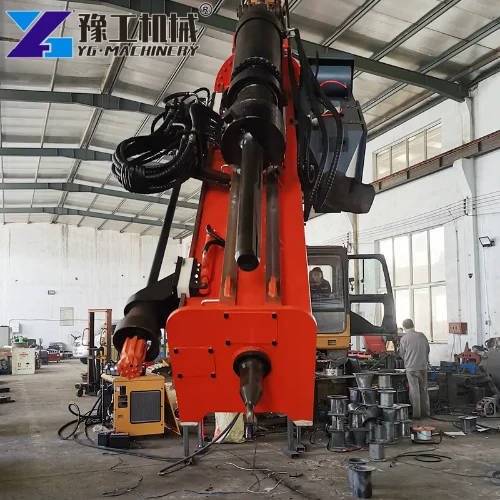

YG’s Integrated Drill and Splitting Machine delivers a staggering 600-ton splitting force, capable of fracturing boulders in seconds while maintaining compact dimensions and user-friendly operation. Its lightweight design ensures high efficiency and cost-effectiveness for rock/concrete demolition. After rigorous iterative testing, the mature hydraulic system and robust build quality have earned trust from global engineering firms, with zero-failure performance in extreme conditions. Exported to Singapore, Australia, and beyond, the machine has received rave reviews for reliability. YG also offers a full suite of solutions, including Portable Rock Splitter, Full-Hydraulic Core Drill, and Trailer-Mounted Water Well Drill, catering to diverse geotechnical needs. Click for a custom quote!
