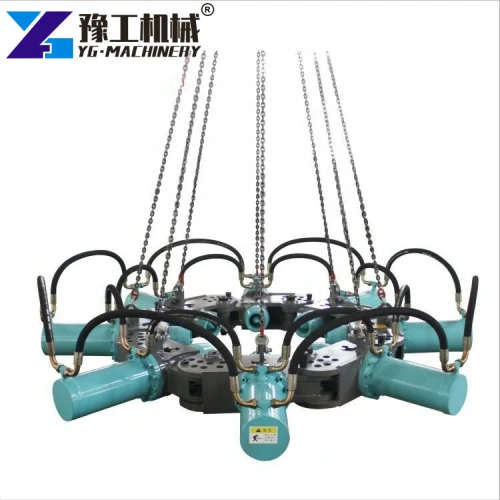

The hydraulic pile breaker is designed to safely and efficiently dismantle concrete piles in construction projects, such as bridge foundations and high-rise buildings. It utilizes adjustable hydraulic pressure to crush piles precisely, minimizing damage to surrounding structures. The modular design adapts to various pile diameters; low vibration and noise ensure eco-friendly operation. With user-friendly controls, it boosts productivity by 3-5 times compared to manual methods, reducing project timelines and costs. We also have other cutting machines, such as rock-splitting machines, diamond wire saw machines, concrete wall saw machines, etc. If you are interested, please contact us.【WhatsApp/WeChat/Phone】+86 138 3711 2713
Hydraulic Pile Breaker Parameter
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Singlemodule weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | Single module weight | ||||||||
Application Scenarios of Hydraulic Pile Breaker

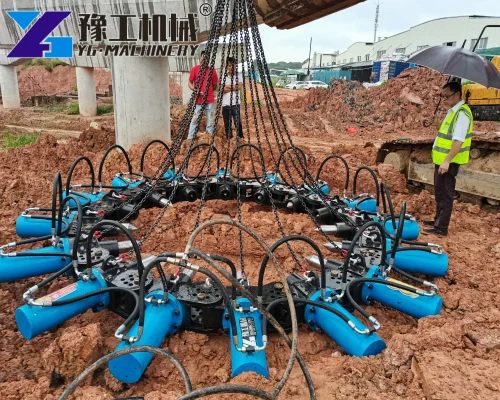

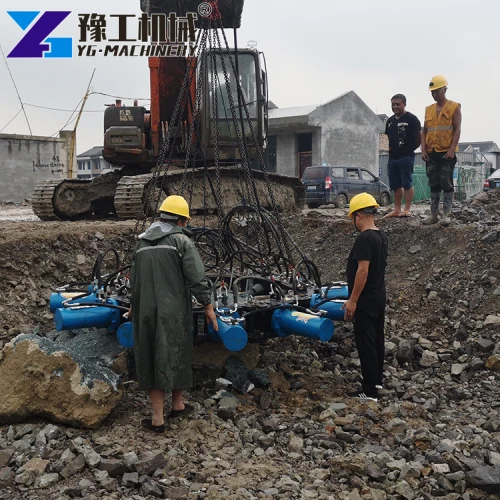

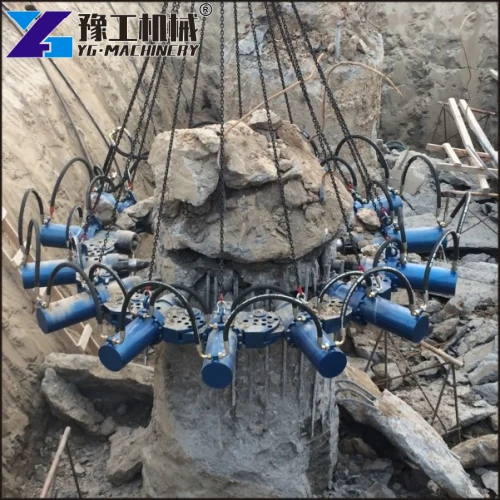

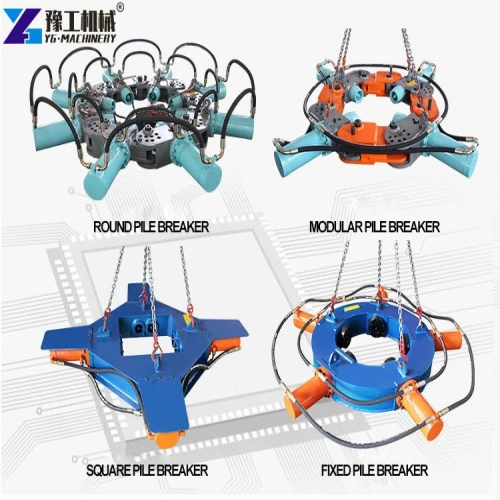

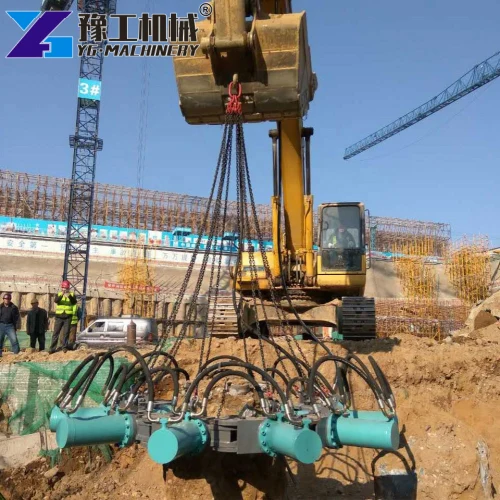

The hydraulic pile breaker is mainly applied in various pile foundation projects for the efficient removal of excess concrete at the top of piles, exposing the required reinforcement for the subsequent connection of pile caps or beam-slab structures. In projects such as bridge construction, industrial plants, and high-rise buildings that require a large number of pile foundations, the concrete pile crusher can significantly improve the efficiency and safety of pile head processing. The general circular pile cutter is suitable for pile diameters of 250 mm to 2500 mm; the square pile cutter is suitable for pile side lengths of 300 mm to 650 mm, which can meet all kinds of requirements for large-scale foundation construction.
Key Advantages of Hydraulic Pile Breaker
1. Efficiency
The hydraulic pile breaker achieves precise pile fracture through hydraulic power, demolishing over 100 pile heads daily. This efficiency far exceeds traditional manual or mechanical methods, significantly shortening project durations.
2. Safety
With its modular design, the equipment adapts to various pile diameters and allows for remote operation. This keeps workers away from hazardous construction areas, greatly reducing safety risks.
3. Environmental Protection
As a professional concrete pile crusher, it operates with low noise and minimal dust pollution, aligning with green construction standards and minimizing environmental impact.
4. Versatility
The hydraulic pile breaker is widely used in construction, bridge, subway, port, and other engineering sectors. It can handle concrete piles of various specifications and materials, meeting diverse construction requirements.
YG Pile Breaker Machine Manufacturer
YG Machinery’s hydraulic pile breaker has performed well in the market. Recently, many customers have inquired about the technical parameters and purchasing plans of the concrete pile crusher via phone calls and emails. With ultra-high operating efficiency, ultra-low operating noise, and strong mechanical compatibility as its core advantages, our equipment can seamlessly connect to a variety of construction machinery. Our product line covers rock splitters, crawler wire saws, hydraulic/electric wall saws, wood splitters, excavator drum cutters, hydraulic crushers, and other full-scenario solutions. With strict quality control and industry-competitive prices, customer satisfaction continues to lead, and partners choose to repurchase in the long term. If you are interested in the pile breaker, please contact us for more discounts!【WhatsApp/WeChat/Phone】+86 138 3711 2713
