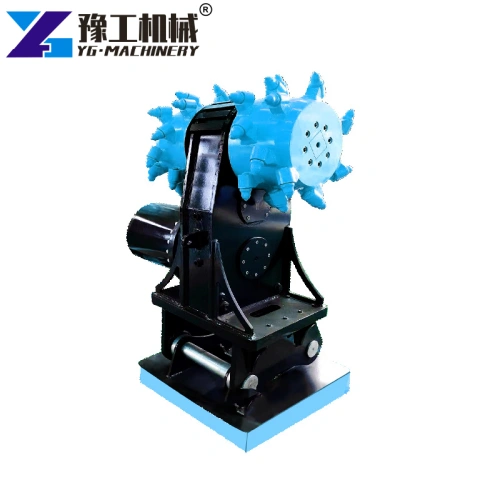

The YG excavator drum cutter is a hydraulically driven milling attachment mounted on excavators, primarily used for milling, excavating, contour trimming, and surface treatment of hard materials such as rock, concrete, and asphalt. Its core characteristics lie in the high-speed rotation of multiple high-strength cutter bits on the drum, driven by a hydraulic motor, generating powerful milling force and enabling precise and controllable cutting with the advantages of low noise, low vibration, and low dust. Excavator drum cutters and milling machines are divided into horizontal and vertical milling machines.
YG Excavator Drum Cutter Parameter
| Model | YG140 | YG160 | YG180 | YG240 |
| H | 650mm | 820mm | 830mm | 1395mm |
| W | 410mm | 650mm | 780mm | 960mm |
| D | 390mm | 460mm | 480mm | 620mm |
| Excavator weight | 5~10T | 10~15T | 15~21T | 20~24T |
| Max power | 22Kw | 45Kw | 55Kw | 65Kw |
| Speed | 0~120r/min | 0~100r/min | 0~80r/min | 0~90r/min |
| Flow | 40L/min | 100~110L/min | 130~180r/min | 200~250r/min |
| Max Torque | 3200N.m | 5400N.m | 5600N.m | 12800N.m |

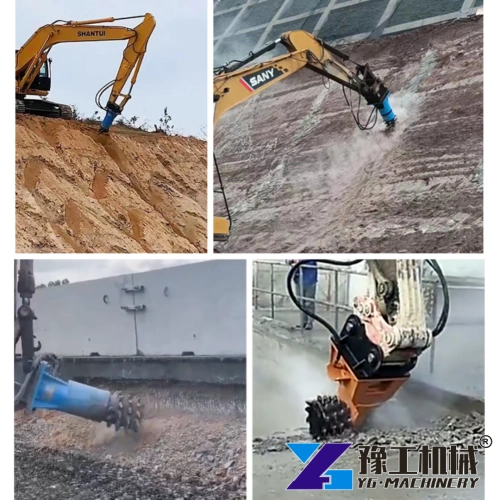

Excavator Drum Cutter Application Scenarios
- Tunnel excavation and repair: Employing the excavator drum cutter for fine excavation of tunnel profiles and trimming of over-excavated areas, ensuring the accuracy and stability of tunnel structures.
- Municipal engineering: The drum cutter demonstrates significant advantages in municipal engineering, suitable for milling and demolition of concrete pavements and walls, as well as precise excavation for pipeline laying, minimizing damage to underground facilities.
- Building demolition and renovation: Utilizing the drum cutter for precise partial demolition of concrete structures and fine trimming of building outlines, providing convenience for subsequent renovation work.
- Stone quarrying and processing: Surface treatment of rocks, fine quarrying of mines, shaping, and cutting of stones.
- Water conservancy projects: Cleaning and widening of water channels, trimming of dams.
- Special environment operations: Operations in noise and vibration-restricted areas, such as near hospitals and schools.
7 Advantages of Excavator Drum Cutter
- Efficient and precise milling: Powerful hydraulic power and an optimally designed cutter bit arrangement ensure efficient and precise milling results. As a professional excavator drum cutter, it can easily handle milling needs for rock and concrete of various hardness levels.
- Low noise and low vibration: Compared to impact crushing equipment such as hydraulic breakers, the drum cutter operates with lower noise and vibration levels, making it more suitable for urban and sensitive environment operations while reducing the impact on surrounding structures.
- High safety: The controllable milling process reduces the risk of splashing and flying debris, improving operational safety. Additionally, considering cost-effectiveness, our drum cutter price is highly competitive.
- Flexible and convenient: Mounted on the excavator, it is easy to move and has a wide operating range, enabling quick adaptation to different work sites.
- Multiple cutter bits optional: Different types of cutter bits can be replaced according to various operating needs to adapt to materials of different hardness and structures.
- Good surface treatment effect: The milled surface is relatively smooth, eliminating the need for additional trimming work.
- Environmentally friendly: The amount of dust generated is relatively small, making it more environmentally friendly.
Excavator Drum Cutter for Sale– YG Machinery
If you are looking for a cost-effective drum cutter, YG Machinery is your ideal choice. We not only provide high-quality products but also have a comprehensive after-sales service system to ensure the efficient and stable operation of your equipment. Choose YG, and you will get a high-performance and reasonably priced drum cutter.
Act now: Click to claim your drum cutter discount. In addition, we have hydraulic breaker machines, excavator crusher buckets, excavator rock saws, pile breakers, rock splitters, firewood splitter machines, etc. Want to know more details? Contact us now!
