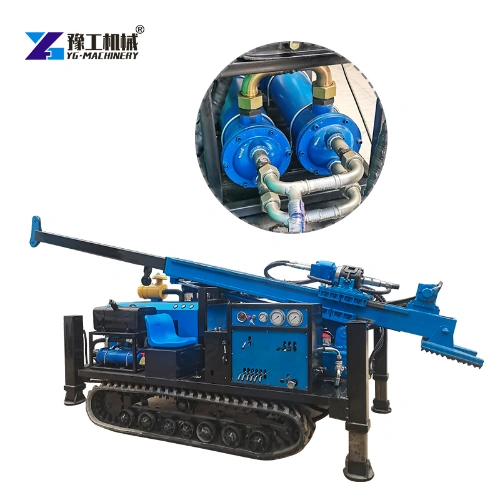

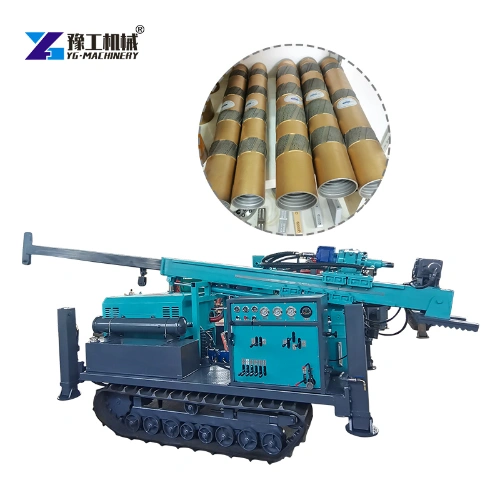

The YG core drilling machine for mining is engineered for deep mineral exploration, targeting metal ores, coal, and rare resources. Key features include a fully hydraulic drive system, modular design, and automated controls to extract high-quality core samples efficiently.【WhatsApp/WeChat/Phone】+86 138 3711 2713
Core Drilling Machine for Mining Technical Parameter
| Model | YGX-400 | YGX-600 | YGX-800 | YGX-1000 |
| Drilling Depth(M) | 180-400-500 | 200-600-650 | 400-800-1000 | 500-1000-1100 |
| Rated pressure(MPA) | 21 | 21 | 25 | 28 |
| Rated Flow(L/min) | 168 | 192 | 260 | 300 |
| Heat Dissipation Mode | Air cooling+water cooling | |||
| Engine Brand | Yuchai | Yuchai | Yuchai | Cummins |
| Rated power/speed | 78kW/ 2400r/min | 92kW/ 2400r/min | 92kW/ 2400r/min | 154kW/2400r/min |
| Drilling Angle(°) | 0-90 | 45-90 | 45-90 | 45-90 |
| Lifting Force(T) | 12 | 16 | 24 | 30 |
| Feed Force(T) | 6 | 8 | 12 | 15 |
| Hydraulic Mud pump flow | 30-90（L/min） | 30-90（L/min） | 90-180（L/min） | 90-180（L/min） |
| Hydraulic Mud pump power | 4-7(MPA) | 4-7(MPA) | 4-7(MPA) | 4-7(MPA) |
| Dimension | 4000*1900*1800mm | 4000*2000*1800mm | 5500*2100*2000mm | 6000*2200*2400mm |
| Weight | 4.3T | 4.5/5.5T | 6.5T | 7.5T |

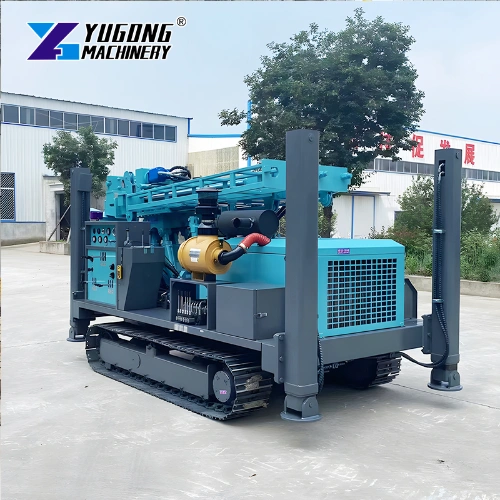

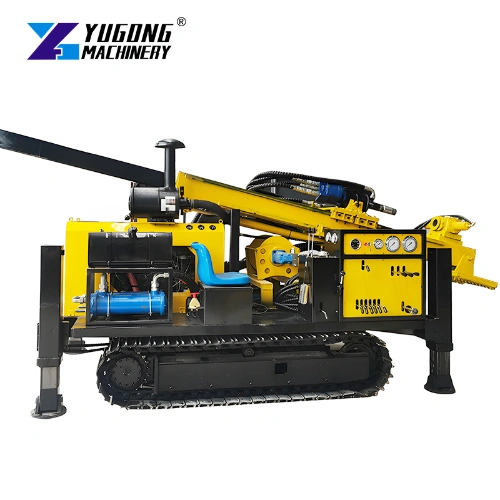

Advantages of YG’s Hydraulic Core Drilling Rig
- Hydraulic technology reduces power consumption while boosting drilling speed by 30%.
- Closed-loop hydraulic control ensures vertical accuracy in complex geological conditions.
- Heavy-duty construction with anti-corrosion materials extends service life and cuts maintenance costs.
- Crawler-mounted models feature remote-controlled mobility, excelling in steep slopes or confined underground spaces.
- The power head adopts the method of automatic opening of the hole and is equipped with a clamp, shackle, and drill pipe centralizer, which can conveniently and quickly complete the rope coring operation of straight holes and inclined holes, eliminating the need for traditional secondary drilling. Platform operation, high degree of automation, easy to operate.
- The guide rail of the main tower adopts a V-shaped structure, the connection between the power head and the main tower is high in rigidity, the high-speed rotation is stable, and the core-taking rate is high.
- The rope speed of the empty drum of the rope coring hoist reaches 205m/min, which reduces the auxiliary time.
- The hydraulic system of the drilling rig is reliable, the mud pump and mud agitator are controlled by hydraulic pressure, and various operations of the drilling rig are centralized, which is convenient for dealing with various downhole accidents.
Applications & Scope
- Mineral Exploration
Ideal for gold, copper, and diamond mining, providing critical data for reserve estimation. - Oil & Gas Drilling
Supports deep-well exploration (up to 1,000m) for shale gas and petroleum extraction. - Geotechnical Engineering
Used in infrastructure projects for soil stability analysis and foundation design. - Environmental Monitoring
Facilitates groundwater sampling and landslide risk assessment for sustainable environmental management.
Crawler Core Drill Rig Manufacturer – YG Machinery
Investing in a high-quality core drilling machine for mining is an investment in accurate data, de-risked operations, and ultimately, the long-term profitability and sustainability of mining ventures. As a trusted core drilling machine for mining manufacturer, YG delivers cutting-edge technology and customized solutions. We also provide customization services. In addition, we have a variety of other rigs available, such as trailer water well drilling rigs, crawler water well drilling rigs, tractor water well drilling rigs, small water well drilling rigs, crawler dth drilling rigs, horizontal directional drilling rigs, rotary drilling rigs, hydraulic pile drivers, anchor drilling rigs, portable dth drilling rigs, portable air compressors, and full hydraulic core drilling rigs. Reach out to us if you would like to obtain a quote!【WhatsApp/WeChat/Phone】+86 138 3711 2713
