In modern construction and renovation projects, tackling cutting tasks on reinforced concrete, brick walls, or stone often brings challenges like inefficiency, high noise, excessive dust, and potential structural damage. YG Machinery deeply understands these industry pain points and proudly introduces our concrete wall saw cutting machine, offering a revolutionary solution for your projects. This advanced equipment is specifically designed for precise and efficient handling of various hard wall materials, aiming to help you overcome construction difficulties and significantly enhance project efficiency and safety.
Parameters of Hot-sale Electric Concrete Wall Saw:
Electric Type Wall Saw Machine
Model
YG-800
YG-1000
YG-1200
Type
Manual type / Semi-automatic type / Full automatic type (every model has three types)
Cutting depth
320mm
420mm
520mm
Saw blade diameter
800mm
1000mm
1200mm
Power/Voltage
7280w/220v
7580w/220v
7880w/220v
Rotary speed
400r/min
380r/min
350r/min
Machine weight
35kg
38kg
45kg
Machine size
55*55*78cm
55*55*88cm
55*55*98cm
Remark: Manual type means to put the saw blade by hand and walk manually on the track. Semi-automatic means putting the saw blade by hand, but self-propelled walking on a track. Full automatic means putting the saw blade automatically and walking on a track automatically.

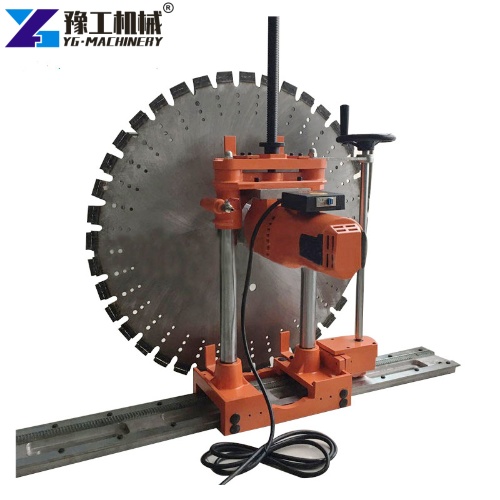

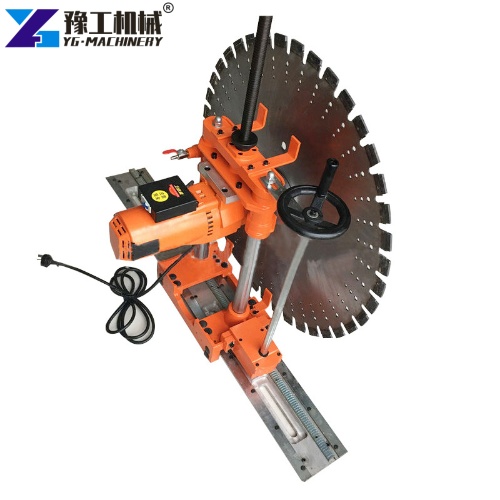

Our concrete wall saw cutting machine is a specialized device for cutting hard walls such as concrete, brick, and stone. It primarily consists of a high-power motor, a robust guide rail system, a diamond saw blade, a control box, and an auxiliary cooling/dust removal system. The machine features a compact, highly modular design for easy transport and on-site assembly. Operators can control it remotely via a control panel or remote control (for some models), greatly improving construction safety.
Simple and Efficient Working Principle:
The working principle of the YG electric concrete wall saw is intuitive and highly efficient: First, the robust guide rail system is securely mounted on the surface of the wall to be cut, precisely aligned along the pre-set cutting line. Then, the cutting head, equipped with a diamond saw blade, is mounted onto the guide rail. Once the high-performance motor power is activated, the saw blade begins to rotate at high speed. The operator controls the cutting head to move slowly along the guide rail via a precise control system. The rotating saw blade, leveraging the extreme hardness of its diamond segments, progressively grinds and cuts through the concrete material. By adjusting the cutting depth multiple times, the wall is ultimately cut completely through. The guide rail ensures the straightness and stability of the cut, while the diamond saw blade guarantees cutting efficiency and adaptability to hard materials.
Key Features of the Concrete Wall Saw Cutting Machine:
Powerful Output: Equipped with a high-performance motor, our concrete wall saw cutting machine delivers stable and reliable cutting power, easily handling concrete walls of various strength grades, even high-strength reinforced concrete can be cut efficiently.
Precision Guide Rail System: Utilizes high-precision guide rails, ensuring straight cutting lines and neat edges, significantly reducing the need for extensive post-cutting rework and improving construction quality.
Adjustable Cutting Depth: The cutting depth of the saw blade can be quickly and conveniently adjusted according to construction requirements, meeting the needs for cutting walls of different thicknesses and greatly increasing application flexibility.
Compatibility with Various Blades: Supports the installation of diamond saw blades of different diameters, allowing for a maximum cutting depth of several hundred millimeters, offering a wide range of applications and effectively reducing operating costs.
Comprehensive Safety Protection: Integrates multiple safety mechanisms such as overload protection and leakage protection, ensuring the safety of both equipment and operators, maximizing operational safety.
Efficient Cooling/Dust Removal: Wet cutting options include a water cooling system, while dry cutting options can include professional dust collection equipment (i.e., when used as a dry concrete wall saw cutting machine), effectively reducing dust pollution and adhering to environmental standards.
Remote Control Functionality: Some high-end models offer wireless remote control, allowing operators to control the machine from a safe distance, further enhancing safety and optimizing operational convenience.
Modular Design: Main components can be quickly assembled and disassembled, facilitating transportation, handling, and on-site installation, particularly suitable for confined spaces, improving equipment portability.
Wide Application Scenarios and Industry Case Studies:
Building Renovation and Demolition: Performing precise cuts on walls, slabs, and beams without affecting the overall structure, such as creating openings for new doors, windows, or elevator shafts.
Structural Reinforcement and Modification: Providing flat cutting surfaces for new structures or precise structural modifications based on design changes.
Municipal Engineering: Used in the renovation and maintenance of bridges, tunnels, and culverts, as well as precise trenching for underground pipeline installation.
Success Story: Ahmed’s Apartment Building Renovation in Qatar
Mr. Ahmed, a construction contractor in Qatar, undertook an interior renovation project for a luxury apartment building. This involved creating numerous new floor-to-ceiling windows and door openings in high-rise apartment units to improve lighting and spatial perception. Traditional breaking tools were not only noisy, disturbing residents, but also struggled to ensure the flatness of cutting edges, increasing subsequent decoration costs. Mr. Ahmed urgently needed an efficient, low-noise, high-precision solution.
He ultimately chose YG Machinery’s concrete wall saw cutting machine. Specifically, the electric wall saw for sale model we offered was favored for its excellent quietness and dust-free cutting capabilities. On the project site, Mr. Ahmed’s team used our electric concrete wall saw to precisely complete all pre-set cutting tasks. The equipment’s high-precision cutting ability ensured that the edges of every window and door opening were flat and smooth, significantly reducing subsequent patching and plastering work. According to Mr. Ahmed, by using YG Machinery’s equipment, their cutting efficiency increased by 35%, the waste rate was almost zero due to the high quality of the cut surfaces, and resident complaints decreased by 90% due to excellent noise and dust control, shortening the total duration of the entire renovation project by 20 days. He particularly noted that the reasonable electric wall saw price and YG’s excellent after-sales service made this investment exceptionally worthwhile.
How to Choose the Right Concrete Wall Saw Cutting Machine?
Selecting the most suitable concrete wall saw cutting machine for your needs is crucial. The market offers various models and configurations, and understanding your project’s specific requirements will help you make an informed decision. When considering a purchase, you should focus on the following key points:
Cutting Depth Requirement: Choose equipment with sufficient maximum cutting depth based on the wall thickness you need to cut. Our electric wall saw models typically differentiate maximum cutting depths based on saw blade diameter.
Power Source Type: Consider the power supply available at your construction site. An electric wall saw is easy to operate, has low maintenance costs, and is ideal for locations with stable power supply and where noise requirements are not stringent.
Material Type: While our equipment can handle concrete, brick walls, and stone, for exceptionally hard walls or those with significant rebar, specially designed diamond saw blades might be required.
Budget: Understand the range of electric wall saw price for different models and choose the most cost-effective equipment within your budget.
We recommend that you consult with our professional technical team before making a final decision. They will provide expert selection advice and customized solutions based on your specific project environment and requirements.
