Are you also troubled by low drilling efficiency? Thomas Harrison from Australia knows this well. He has worked in gold exploration for years and recently took over a deep-hole exploration project in Western Australia. His old equipment caused headaches: cuttings often blocked the channel, leading to frequent shutdowns; the sample retention rate was only 80%, affecting ore vein judgment; and excessive dust brought environmental warnings. He urgently needed a high-efficiency, reliable reverse drilling machine. After comparing products from multiple countries, he chose YG.
How Did YG’s reverse drilling machine Solve Australian Exploration Problems?
Project Background: The “Tough Nut” of Western Australian Gold Mines
Thomas’s project is located in the Pilbara region of Western Australia. It requires drilling 300-meter deep holes to detect gold ore layers.
The geology here is complex, with a lot of volcanic breccia and fracture zones. He required the equipment to:
- Reach a drilling depth of 300 meters
- Have a sample retention rate over 95%
- Meet local environmental standards
- Reduce shutdown and maintenance time
YG’s reverse drilling machine fully met these needs.
Product Performance: Targeting Three Key Pain Points
- Anti-clogging & High Efficiency: This reverse drilling machine is equipped with an arc-shaped slag discharge channel. Combined with a circular flow channel design, it completely solves the problem of cutting blockages. Shutdown times decreased by 80%.

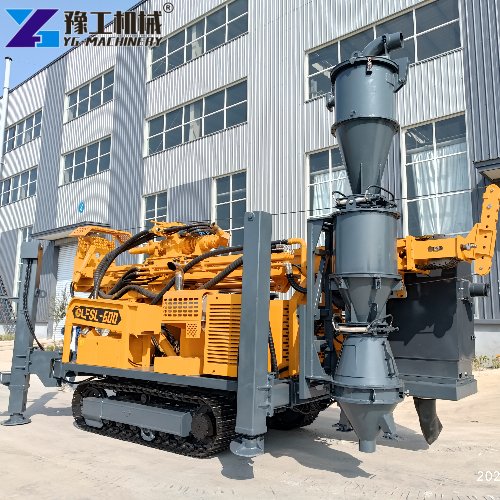

- Accurate Sampling: With a cyclone separator, the sample retention rate reaches 96%, far exceeding his expectations.
- Environmental Protection & Durability: The dust collector filters over 90% of dust, easily passing local environmental inspections. The air pre-filter extends engine life and reduces maintenance costs.
Service Support: Full-Process Guarantee from Customization to After-Sales
Why choose YG? Thomas said, “The service is so thoughtful!”
Before sales, YG engineers remotely analyzed geological data and customized drilling parameters. During sales, the equipment arrived at the Port of Perth in 15 days, with a detailed operation manual and video tutorials. After sales, 24/7 remote technical support was provided—once a late-night fault was resolved in 10 minutes.
His team mastered the equipment operation skillfully within 3 days through video tutorials and manuals.
Reverse Drilling Machine Parameter
Model | YG150RC | |
Drill rig weight(crawler mounted) | kg | 9000 |
Engine Power | kW | 125 |
Length × Width × Height (normal) | mm | 6750x2200x2950 |
Ambient Temperature Range | °C | -10~38 |
Drill Ability | ||
Nominal Drill Depth | m | 150 |
End-hole Diameter | mm | 110-250 |
Drill angle | ° | -10-90 |
Horizontal hole height | m | 1.85-2.8 |
Drill head output | ||
Max Output Torque | N.m | 8000 |
Output Rotation Speed(continuity) | rpm | 30 / 60, 54/108rpm |
Output Rotation Speed(interval) | rpm | 62 / 124105/210rpm |
Feeding | mm | 3500 |
Thrust Force | kN | 45 |
Lifting Capacity | kN | 65 |
Pipe-puller Device Output | ||
Output Rotation Speed | rpm | 40 |
Max Output Torque | N.m | 30000 |
Hole-through Diameter | mm | 370 |
Auxiliary Winch | ||
Pull Force of the First Layer | kN | 11 |
Rope Diameter | mm | 14 |
Rope Capacity | m | 60 |
Engine(Cummins) | 6BTA5.9-C125 | |
Power | kW | 125 |
Rotary Speed (Max.) | rpm | 2200 |
Track Chassis Base | ||
Walk Speed | Km/h | 1.2 |
Unit Pressure | MPa | <0.05 |
Climb Ability | ° | ≥20 |
Quantifiable Results & Client Praise for the Reverse Drilling Machine
Data Speaks: Dual Breakthroughs in Efficiency and Cost
After using YG’s reverse drilling machine, obvious changes occurred in the project:
- Daily drilling volume increased from 2 to 5 holes, with efficiency up by 150%
- Maintenance intervals extended from 50 hours to 500 hours, saving 60% on maintenance costs
- Accurate sampling data helped lock in ore vein locations 10 days early
- No environmental fines were incurred, reducing compliance costs to zero
Client Reputation: “I’ll Choose YG Next Time”
Thomas admitted, “This reverse drilling machine exceeded expectations!”
“I was not satisfied with three previous sets of equipment, but YG’s RC drill rig is so reliable,” he added. “Sampling is accurate, faults are few, and service response is faster than local suppliers.”
Now, he has recommended three peers to purchase YG equipment.
Market Demand for Reverse Drilling Machine & YG’s Advantages
Strong Global Demand, YG Equipment Sold in Many Countries
Demand for reverse drilling machine is surging in major mining countries.
YG products have been sold to over 20 countries, including Australia, Canada, South Africa, and Brazil. In Canada, reverse circulation drilling rig is used for copper exploration; in South Africa, rc drilling rig serves gold mining projects; in Brazil, the equipment supports geothermal drilling.
Why YG Wins? Dual Advantages of Quality and Price
YG’s reverse drilling machine has CE certification, and its performance matches international brands.
More importantly, direct factory pricing eliminates intermediate links. The price is 30% lower than European and American products. At the same time, it provides a 1-year warranty, leaving clients with no worries.
You Can Also Own This High-Efficiency reverse drilling machine
Are you also facing slow drilling and poor sampling?
YG’s RC drill rig for sale is suitable for exploration drilling scenarios such as gold and copper mines. Consult now to get free geological analysis and customized solutions. You can also view more overseas cases.
Contact YG immediately and let the reverse drilling machine boost your efficiency and cut costs!
