Malaysia is rich in stone resources. With the vigorous development of infrastructure construction and decoration industries in recent years, there has been an increasing demand for efficient and environmentally friendly stone mining technology and equipment. YG machinery successfully entered the Malaysian market with its high-performance wire saw cutting machine and was highly recognized by customers, becoming an important driving force for the upgrading of the local stone mining industry.
There are many types of stone in Malaysia, including granite, marble, etc. The traditional blasting mining method is not only inefficient, but also causes a lot of resource waste and environmental pollution. Therefore, the diamond wire rock saw, which can achieve precise, efficient, and environmentally friendly mining, has shown huge advantages in the Malaysian stone industry.

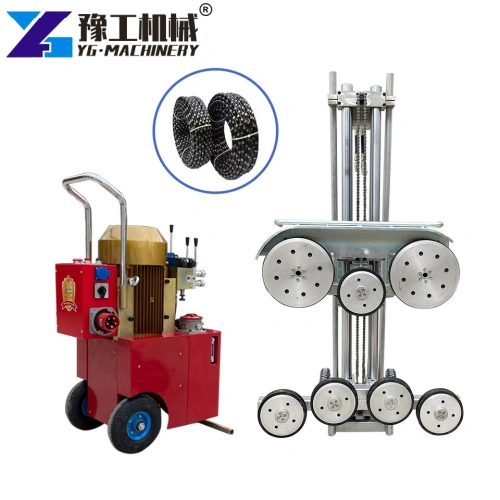

Wire Saw Machine Parameter
| Diamond Wire Saw Parameters | Hydraulic Pump Station Parameters | ||
| Wire drive mode | hydraulic | Rated output power | 22/25kw |
| Mode type | HM-40/80 | Working voltage | 380v50Hz |
| Minimum input power | 25/33HP | Hydraulic pump station | gear pump |
| Output shaft speed | 350/940/1300r/min | Motor working flow | 40-100L/min |
| Maximum wire length | 18m | Working pressure | 15-20Mpa |
| Enter method | fully hydraulic | Oil tank volume | 17L |
| Cutting machine weight | 64kg | Weight | 98kg |
| Motor weight | 14kg | Dimension(mm) | 650*550*1150 |

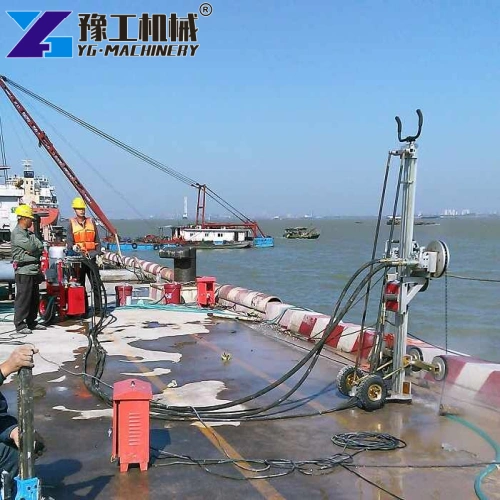

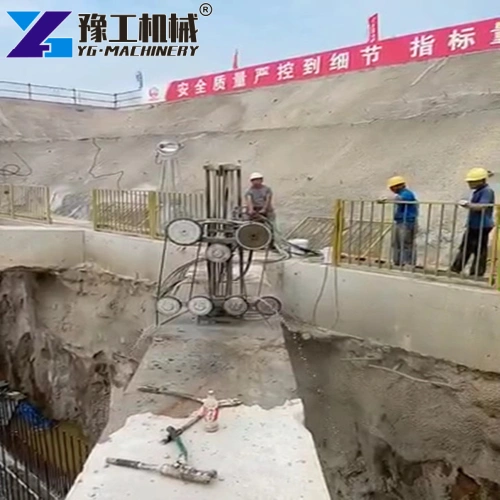

Successful Application of YG Wire Saw Cutting Machine in Malaysian Granite Mines
A large granite mining company in Malaysia has been using traditional blasting methods for mining, which is not only inefficient but also difficult to guarantee safety. In order to improve mining efficiency and resource utilization, the company decided to introduce advanced stone-cutting equipment. After inspecting multiple international suppliers, they finally chose YG Machinery’s wire saw cutting machine for granite.
YG Machinery’s technical team recommends diamond wire saw models that suit the customer’s mining needs based on the specific conditions of the customer’s mine. During use, the YG wire saw machine demonstrated excellent cutting performance, the cutting efficiency was greatly improved, and the stone yield rate was also significantly improved. The customer is very satisfied and believes that it not only solves the production bottleneck, but also improves the working environment of the mine. They especially appreciated the thoughtful service and professional technical support provided by the YG team.
Working Principle of Hydraulic Wire Saw Cutting Machine
The wire saw is a hydraulic pump station pressure-driven hydraulic motor that rotates. The hydraulic motor drives the driving wheel to rotate, and the driving wheel drives the rope to rotate. At the same time, the rope is guided by the driven wheel to control the direction of the rope, allowing it to rotate at high speed, thereby achieving the purpose of cutting and dismantling reinforced concrete. This equipment can achieve various cuts of thicker concrete. It is generally used for the static cutting and removal of bridges, piers, dock platforms, and underwater concrete piles to ensure that the original structure is not damaged.
YG Machinery Manufacturer
If you have any specific questions about a machine and the relevant information is not provided on the website, please feel free to contact us, and we will provide you with the required information free of charge. In addition to hydraulic wire saws, our company also provides electric diamond wire saws, concrete wall saws, stone cutting machines, hydraulic rock splitters, concrete pile crushers, excavator hydraulic shears, hydraulic crushers, excavator crushing buckets, excavator drum cutters, mobile crushers, wood splitters, horizontal band saws and other products. They each have their advantages, and you can choose the type of machine that suits you based on their pros and cons. Feel free to contact us for a quote.
